Grundfos 92926472 - CRN 5-6 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92926472

Price:
Sale price$5,759.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92926472 - CRN 5-6 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92926472 - CRN 5-6 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 5-6 A-FGJ-A-E-HQQE model ensures optimal fluid handling capabilities, making it suitable for various operational environments. Whether you need a pump for water supply, irrigation, or industrial processes, this model is built to meet your demands.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and experience the quality and reliability that Grundfos is known for.

EAN 5715121663908
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 99.3 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 203.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor No 99910575
Motor standard NEMA
Net weight 84.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated head 147.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 6
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

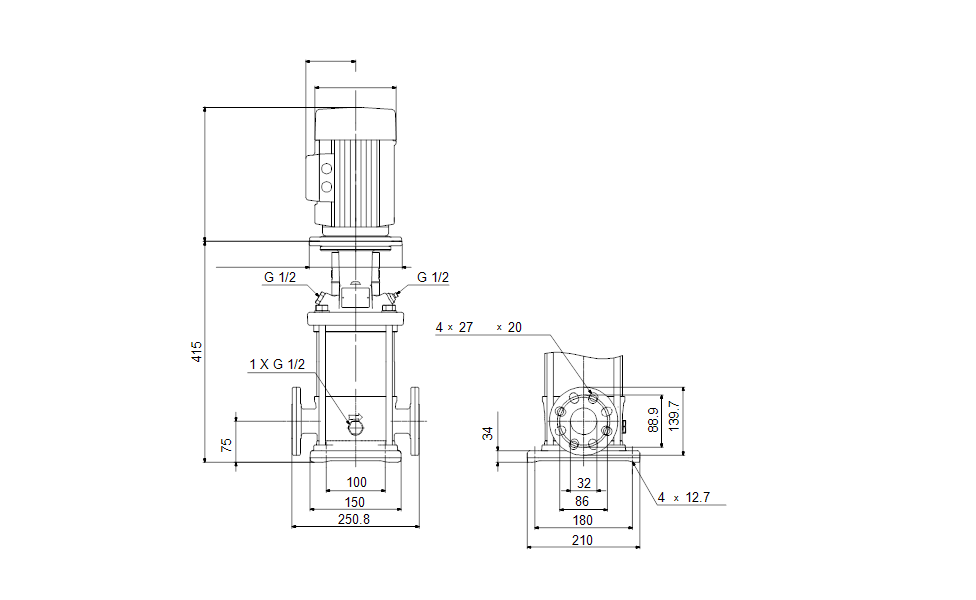

Dimensional Drawing
