Grundfos 99181205 - CRN 5-4 X-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99181205

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99181205 CRN 5-4 X-GA-A-E-HQQE is a vertical multistage centrifugal pump used in industrial and high-pressure in-line systems by service technicians and plant maintenance crews.

Key features

  • Vertical multistage centrifugal design for compact, high-head pumping
  • Configured for in-line, high-pressure service and repair applications
  • Delivers reliable pressure staging and consistent flow for system stability

Applications

Suitable for high-pressure boosting, industrial process circulation, boiler feed, and other in-line vertical multistage duties where compact footprint and staged pressure are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99181205

EAN 5712608221125
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 83.8 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 136.8 ft
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
Net weight 71.5 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.81-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3466 rpm
Pump version X
Pumped liquid Water
Rated current 6
Rated flow 30.8 US gpm
Rated head 95.48 ft
Rated power - P2 1.5 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/2 inch
Size of outlet connection 1 inch
Stages 4
Standard NEMA
Starting current 800-910 %
Type 90GB
Type of connection GA
Version X

Motor Curves

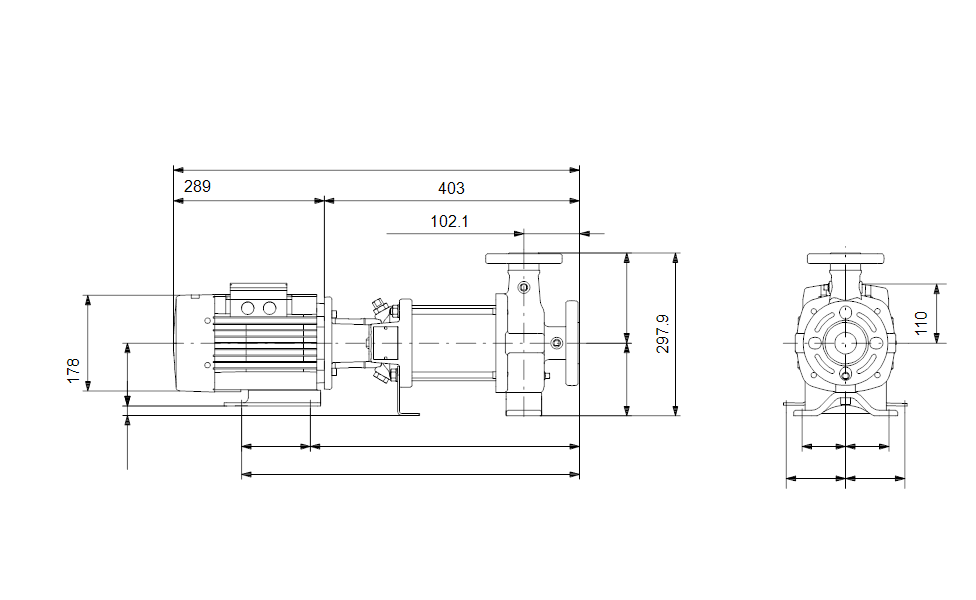

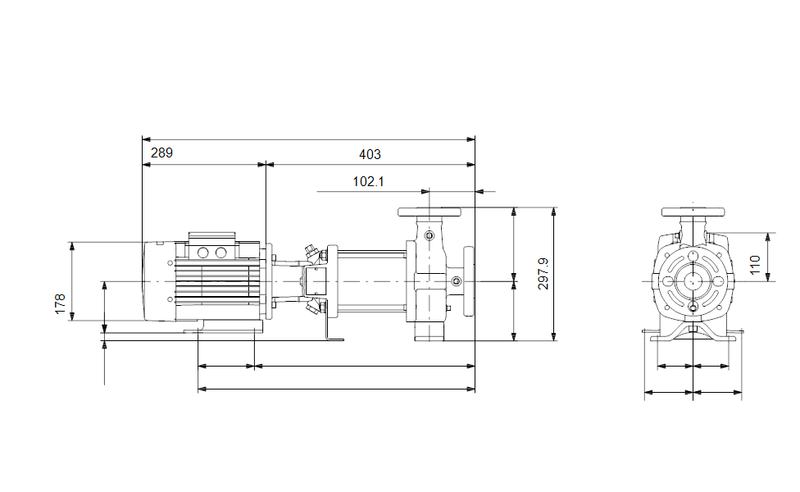

Dimensional Drawing

DWiring Diagram
