Grundfos 97954321 - CRN 5-4 A-CX-T-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97954321

Price:
Sale price$5,748.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97954321 - CRN 5-4 A-CX-T-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CRN 5-4 A-CX-T-E-HQQE model is ideal for high-pressure applications, ensuring optimal fluid transfer and consistent performance. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97954321. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710627060053
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 25.1 kg
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 41.3 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 84.0-84.0 %
Motor standard IEC
Motor type 80C
Net weight 22.4 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.80-0.74
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version A
Pumped liquid Water
Rated current 4
Rated flow 6.9 m³/h
Rated head 28.4 m
Rated power - P2 1.1 kW
Rated speed 3420-3470 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard IEC
Starting current 430-500 %
Type 80C
Type of connection TriClamp
Version A

Motor Curves

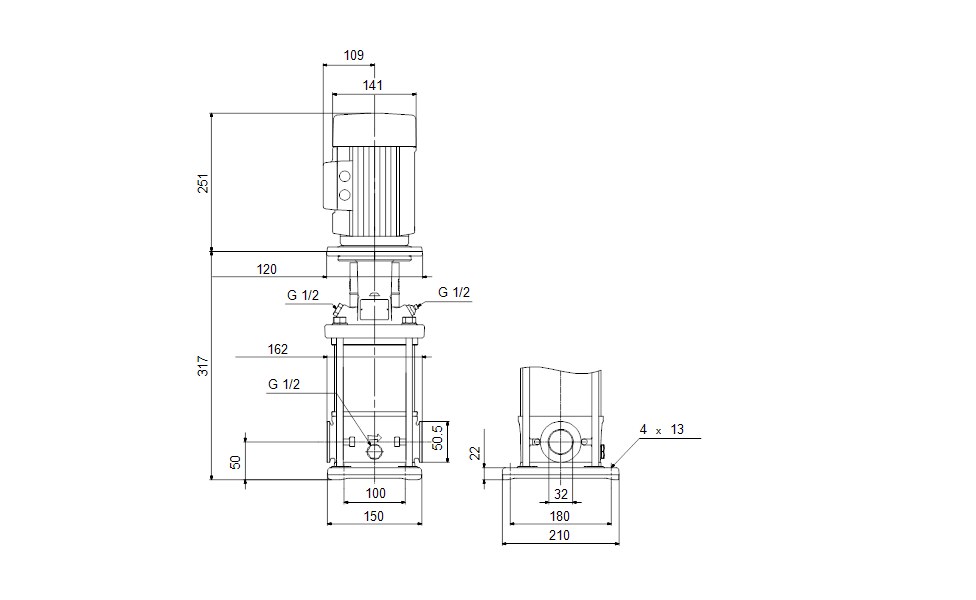

Dimensional Drawing

DWiring Diagram
