Grundfos 97697651 - CRN 5-4 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97697651

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos CRN 5-4 A-CA-A-E-HQQE vertical multistage centrifugal pump fits high-pressure in-line systems and is used by service technicians and plant maintenance teams for industrial and commercial fluid transfer.

Key features

  • Factory-quality construction suited for demanding industrial applications
  • Vertical, in-line multistage design for compact installation and high head capability
  • Efficient multistage centrifugal operation providing reliable high-pressure fluid transfer

Applications

Boiler feed, booster and pressure-increasing systems, HVAC circulation, industrial process water, and other high-pressure in-line pumping duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97697651

EAN 5710621887984
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 56C
Frequency converter NONE
Gross weight 56.4 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 136.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.82
Motor efficiency at 3/4 load 83.5-81.0 %
Motor efficiency at full load 1 84.1-83.5 %
Motor standard NEMA
Motor type 80CA
Net weight 45.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.84-0.78
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version A
Pumped liquid Water
Rated current 4
Rated flow 30.4 US gpm
Rated head 94.82 ft
Rated power - P2 1.1 kW
Rated speed 3440-3480 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard NEMA
Starting current 7.2
Type 80CA
Type of connection FlexiClamp
Version A

Motor Curves

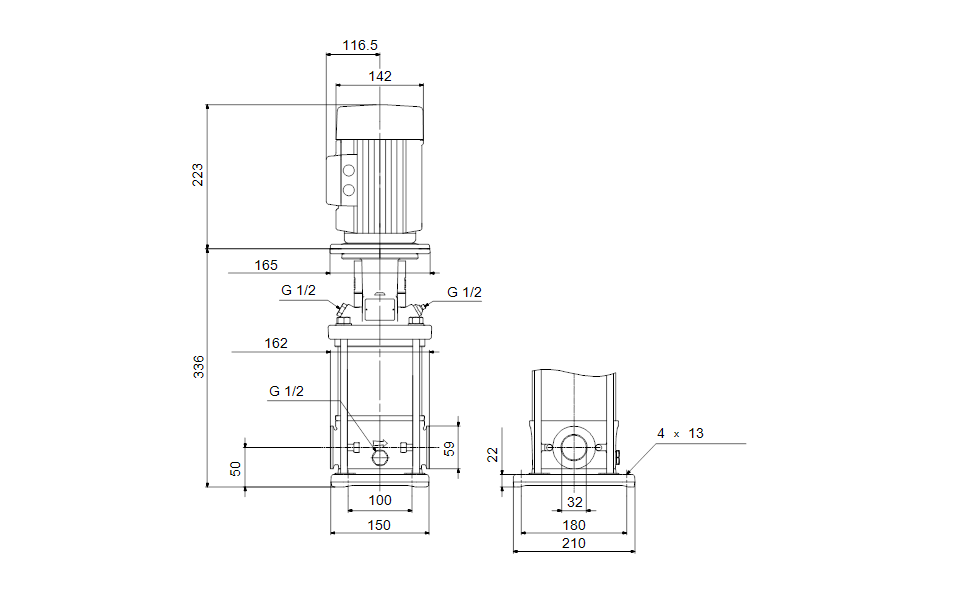

Dimensional Drawing

DWiring Diagram
