Grundfos 98161298 - CRN 5-36 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $5,066.40
GRUNDFOSSKU: 98161298

Price:
Sale price$5,488.60 Regular price$10,555.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161298 - CRN 5-36 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161298 - CRN 5-36 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is categorized under Service Special and is suitable for various applications, including water supply, pressure boosting, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629593238
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 236.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 815 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 181.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 19.0/11.0 A
Rated flow 25.5 US gpm
Rated head 620.8 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 36
Standard IEC
Starting current 1080-1180 %
Type 132DA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

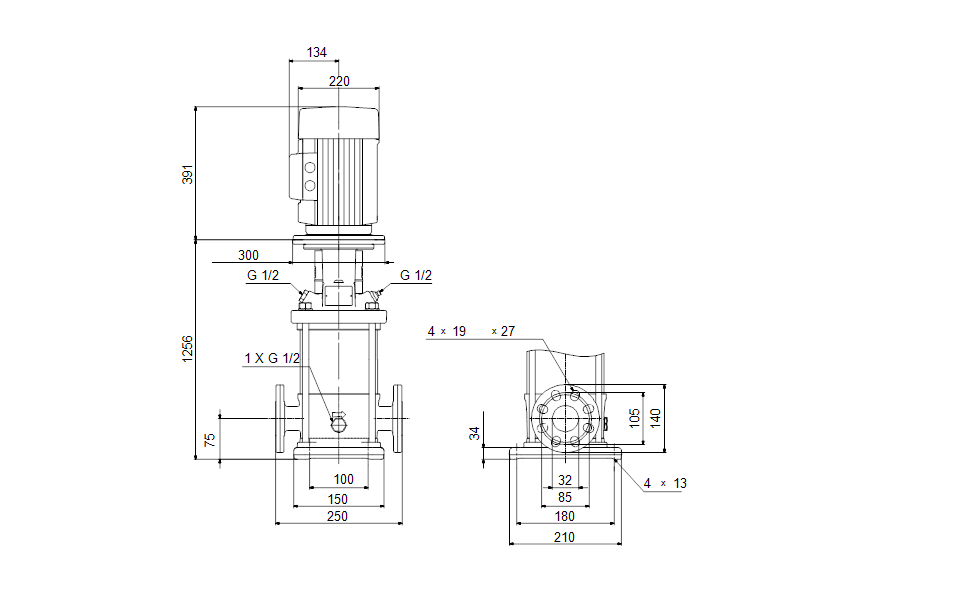

Dimensional Drawing

DWiring Diagram
