Grundfos 99047052 - CRN 5-29 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99047052

Price:
Sale price$12,879.17
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99047052 is a vertical, multistage centrifugal pump (CRN 5-29 A-P-A-E-HQQE) designed for industrial fluid handling where high pressure and compact vertical installation are required. It suits technicians and maintenance teams replacing or servicing in-line and vertical pump systems.

Key features

  • Vertical multistage centrifugal design for staged pressure development
  • Suitable for in-line, high-pressure applications and multi-stage systems
  • Service-special configuration that supports repair or replacement workflows

Applications

Typical uses include boiler feed, high-pressure circulation, industrial water transfer, and other process systems requiring compact, vertical multistage pumping solutions.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99047052

EAN 5712605730422
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 186.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 648 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 85.2-88.1 %
Motor efficiency at 3/4 load 88.6-88.2 %
Motor efficiency at full load 1 88.1-88.1 %
Motor standard IEC
Motor type 112CA
Net weight 141.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.87-0.87
Pressure rating for connection PN 50
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated current 7.9 A
Rated flow 25.5 US gpm
Rated head 493.5 ft
Rated power - P2 4 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 29
Standard IEC
Starting current 1000-1110 %
Type 112CA
Type of connection PJE
Version A

Motor Curves

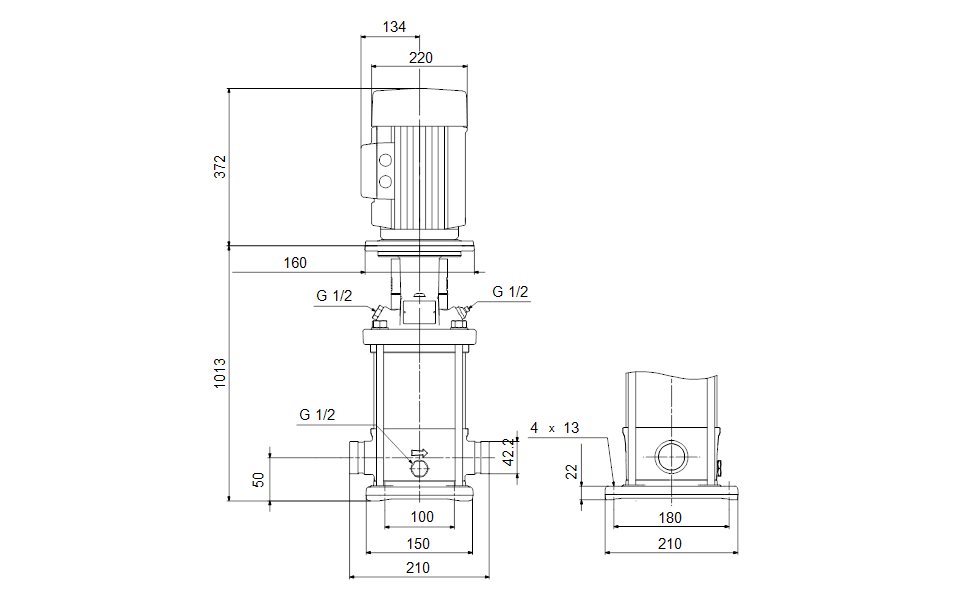

Dimensional Drawing

DWiring Diagram
