Grundfos 97734916 - CRN 5-24 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $4,469.60
GRUNDFOSSKU: 97734916

Price:
Sale price$5,973.40 Regular price$10,443.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734916 - CRN 5-24 H-GA-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97734916 - CRN 5-24 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

With its robust construction and advanced design, the CRN 5-24 model ensures optimal flow rates and energy efficiency. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, allowing you to find the perfect fit for your specific needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97734916. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 291.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 5-24 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 779.9 ft
Maximum operating pressure 362.59 psi
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
n rpm F
Net weight 172.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 7.5 HP
Phase 3
Power (P2) required by pump 7.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 HP
Pump version H
Rated current 19,5-18,1/9,09 A
Rated flow 30.8 US gpm
Rated head 574.8 ft
Rated power - P2 7.5 HP
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CRN 5-24 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 24
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Version H

Motor Curves

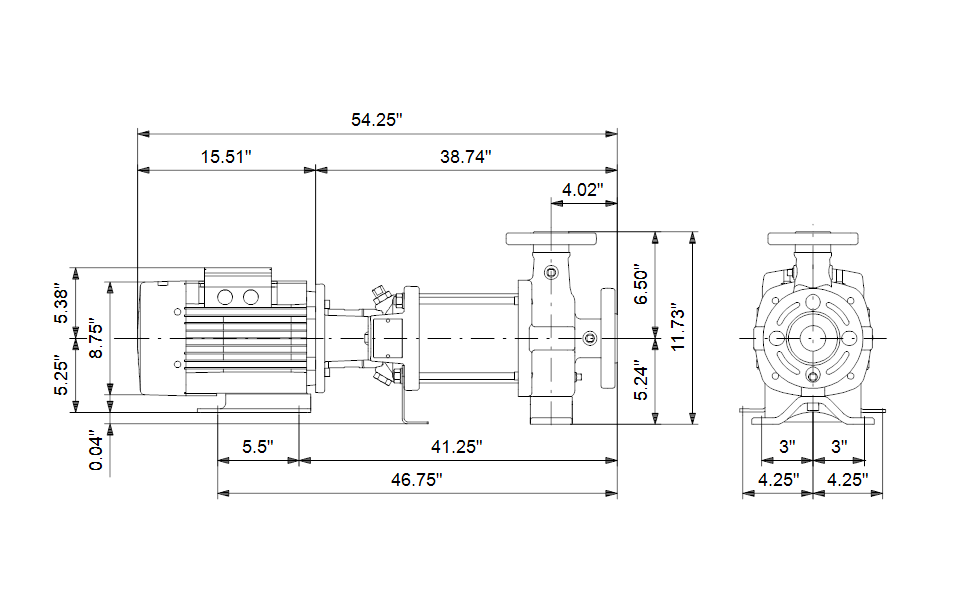

Dimensional Drawing

DWiring Diagram
