Grundfos 98161240 - CRN 5-20 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,702.24
GRUNDFOSSKU: 98161240

Price:
Sale price$4,010.76 Regular price$7,713.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161240 - CRN 5-20 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and is ideal for high-pressure applications, making it suitable for various fluid transfer tasks. The CRN 5-20 A-P-A-E-HQQE is part of the Grundfos Centrifugal Pumps series, specifically categorized under Service Special and Multi-Stage types.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98161240. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710629592651
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 116.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 446.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 87.7-85.4 %
Motor efficiency at 3/4 load 88.0-87.0 %
Motor efficiency at full load 1 87.1-87.1 %
Motor standard IEC
Motor type 100DA
Net weight 104.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 50
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 2902 rpm
Pump version A
Pumped liquid Water
Rated current 11.0/6.30 A
Rated flow 25.5 US gpm
Rated head 337.6 ft
Rated power - P2 3 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 20
Standard IEC
Starting current 840-920 %
Type 100DA
Type of connection PJE
Version A

Motor Curves

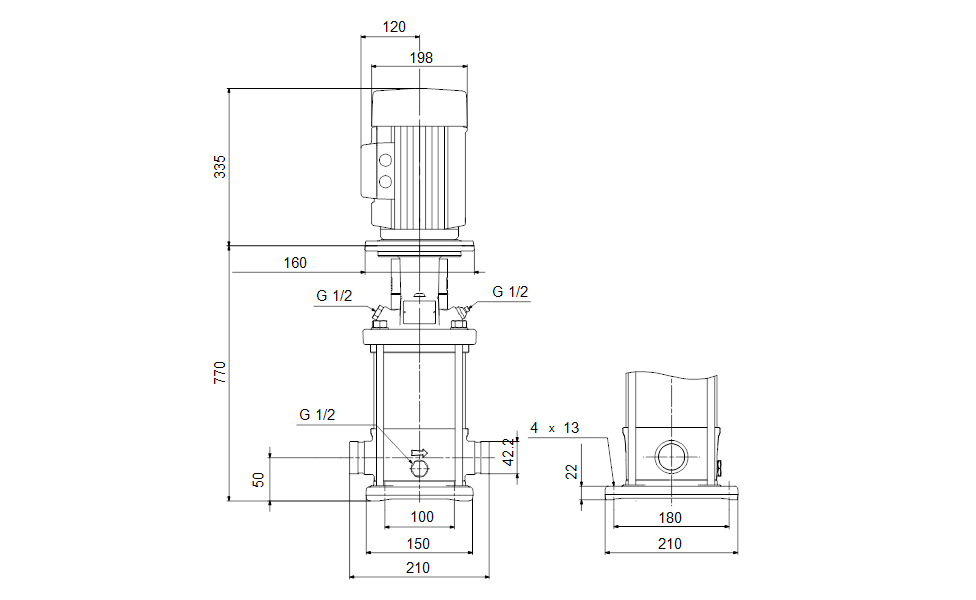

Dimensional Drawing

DWiring Diagram
