Grundfos 98161284 - CRN 5-18 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $3,490.08
GRUNDFOSSKU: 98161284

Price:
Sale price$3,780.92 Regular price$7,271.00
or Call for most up to date lead times. (781) 281-8905

Description

CRN 5-18 A-FGJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5710629593092
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter NONE
Gross weight 122.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 402.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 87.7-85.4 %
Motor efficiency at 3/4 load 88.0-87.0 %
Motor efficiency at full load 1 87.1-87.1 %
Motor standard IEC
Motor type 100DA
Net weight 110.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 25
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 2902 rpm
Pump version A
Pumped liquid Water
Rated current 11.0/6.30 A
Rated flow 25.5 US gpm
Rated head 305.1 ft
Rated power - P2 3 kW
Rated speed 2900-2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 18
Standard IEC
Starting current 840-920 %
Type 100DA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

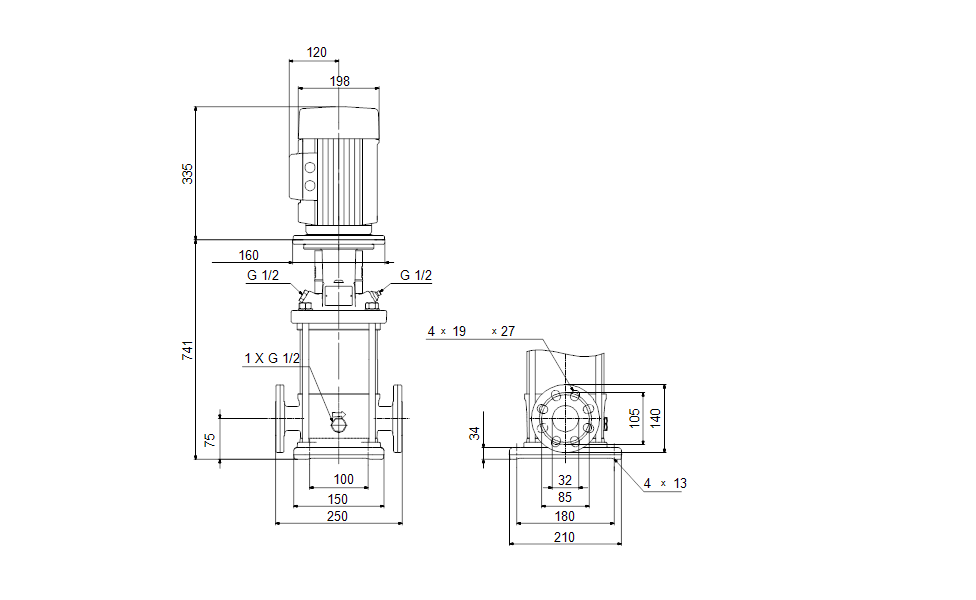

Dimensional Drawing

DWiring Diagram
