Grundfos 99461597 - CRN 5-13 A-P-A-V-HQBV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99461597

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 5-13 A-P-A-V-HQBV · Vertical Multistage Centrifugal Pump — All Stainless
CRN5.5HP220-277D/380-480YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

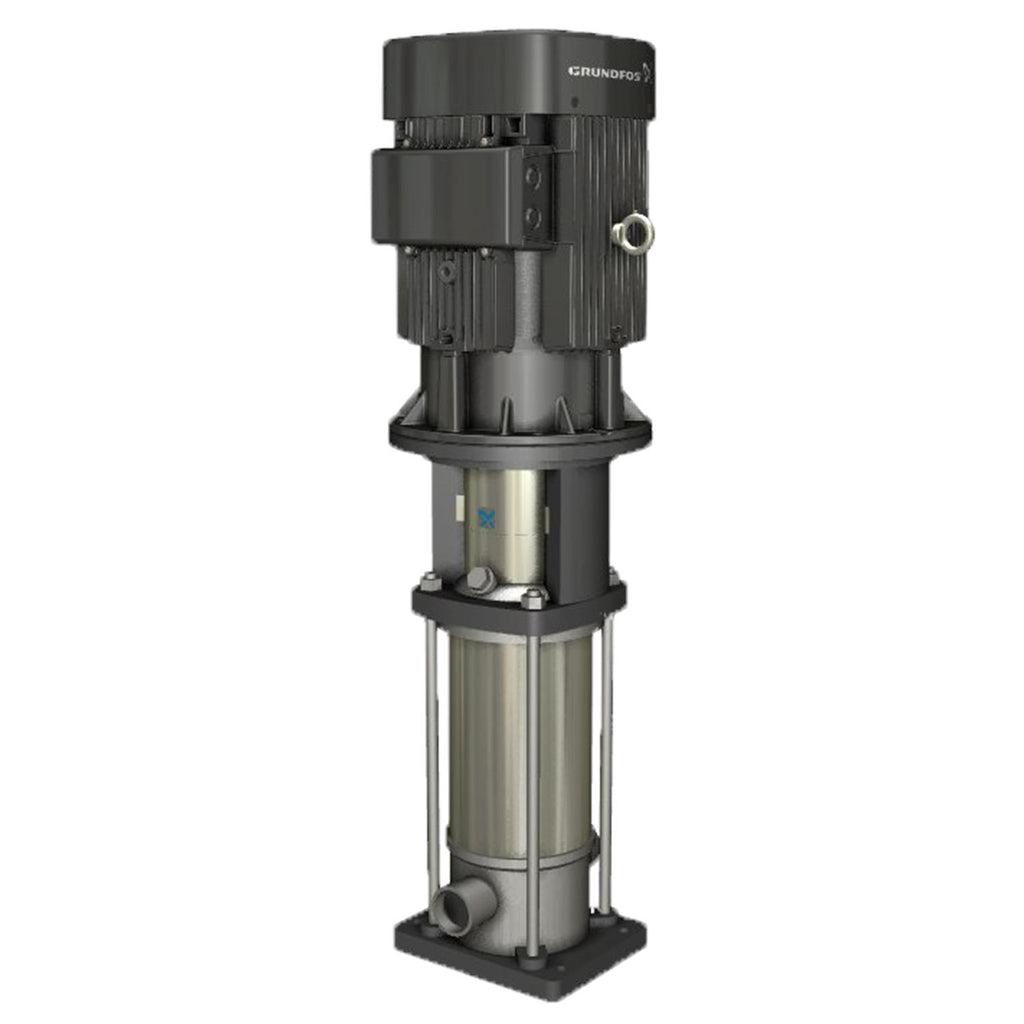

The Grundfos 99461597 (CRN 5-13 A-P-A-V-HQBV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 30.4US gpm at 319.9ft. Rated 220-277D/380-480YV, 3.0-Phase, 60 Hz.

Power
5.5HP
Voltage
220-277D/380-480YV
Phase
3.0-Phase
Max Flow
30.4US gpm
Max Head
319.9ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 5-13 A-P-A-V-HQBV
Series: CRN
Model Code: CRN 5-13 A-P-A-V-HQBV
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQBV
Flange Rating: PN 50
Technical Specifications
Model Number 99461597
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 5.5HP
Voltage 220-277D/380-480YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3510-3540rpm
Pump Speed 3520rpm
Full Load Current 13,6-11,8/7,80-6,80A
Motor Type 112CA
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 88.5-88.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 30.4US gpm
Nominal Head 319.9ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Inlet Connection DN 32
Outlet Connection DN 32
Pipe Pressure Rating PN 50
Pipe Standard PJE
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQBV
Approvals / Certifications CE, EAC, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-277D/380-480YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 5-13 A-P-A-V-HQBV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5713829501560
Approvals EAC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQBV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 127.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 420.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard IEC
Motor type 112CA
Net weight 120.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.91-0.82
Pressure rating for connection PN 50
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3520 rpm
Pump version A
Pumped liquid Water
Rated current 13
Rated flow 30.4 US gpm
Rated head 319.9 ft
Rated power - P2 4 kW
Rated speed 3510-3540 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 13
Standard IEC
Starting current 1000-1470 %
Type 112CA
Type of connection PJE
Version A

Motor Curves

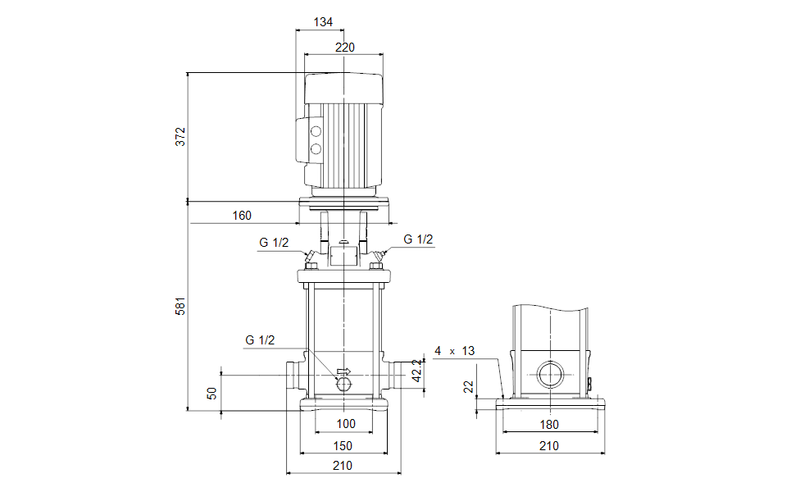

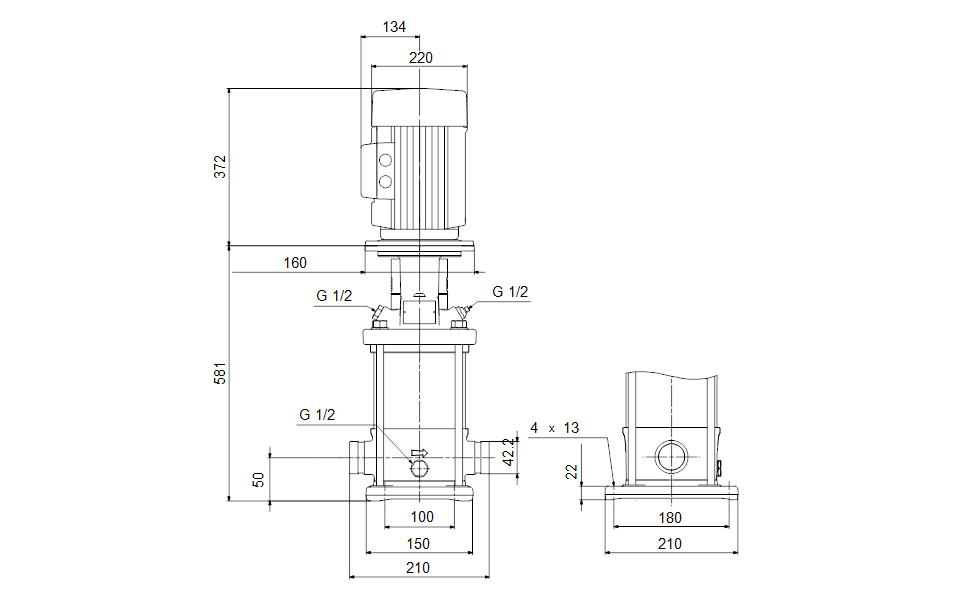

Dimensional Drawing

DWiring Diagram
