Grundfos 98672828 - CRN 5-11 A-P-T-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98672828

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98672828 - CRN 5-11 A-P-T-E-HQQE is a vertical multistage centrifugal pump designed for industrial service where compact, high-pressure liquid handling is required. It suits maintenance techs and facility engineers replacing or servicing multi-stage vertical pumps.

Key features

  • Manufactured by Grundfos for industrial applications and service replacements
  • Designed as a vertical, in-line multistage centrifugal unit for high-pressure needs
  • Delivers reliable pressure staging and space-saving vertical installation for easier system integration

Applications

Typical uses include high-pressure boosting, boiler feed, industrial water circulation, and other in-line multistage pumping duties in commercial and industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98672828

EAN 5711499355483
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 182TC
Frequency converter NONE
Gross weight 53.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 355.3 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 39.3 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 30.4 US gpm
Rated head 263.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 11
Standard NEMA
Type of connection PJE
Version A

Motor Curves

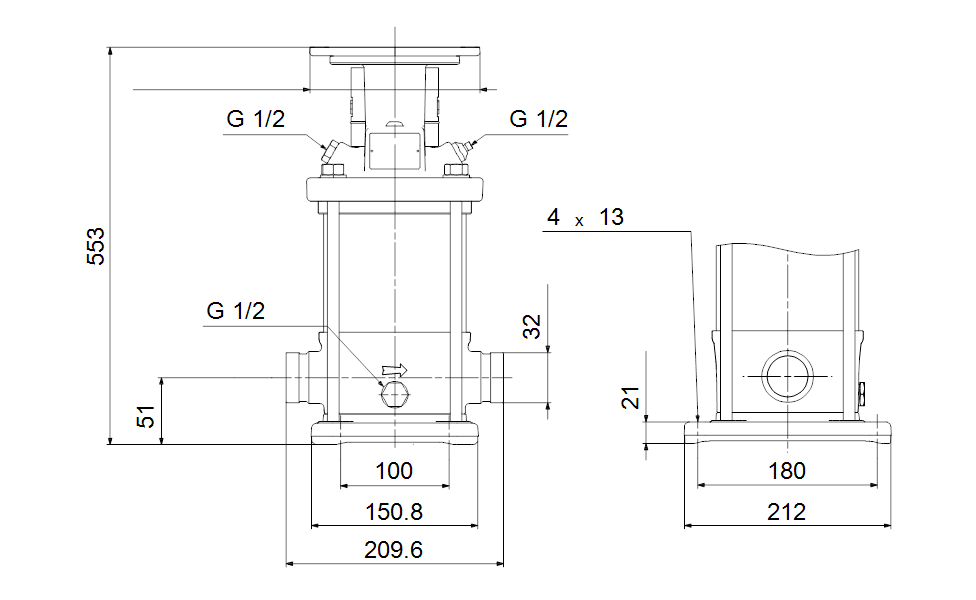

Dimensional Drawing
