Grundfos 98928313 - CRN 5-10 A-CA-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98928313

Price:
Sale price$8,698.61
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98928313 is a vertical, multistage centrifugal pump (CRN 5-10 A-CA-A-E-HQQE) suited for industrial and commercial fluid-handling systems, used by maintenance teams and plant operators.

Key features

  • Engineered for industrial applications and service operations
  • Vertical, multistage centrifugal configuration for high-pressure, in-line installations
  • Provides reliable high-pressure fluid transfer and efficient boosting for process systems

Applications

Typical uses include water boosting, boiler feed, high-pressure process services, reverse-osmosis feed, and other industrial or commercial fluid handling where compact vertical multistage pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98928313

EAN 5712603726519
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 99.9 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 337 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor efficiency at 1/2 load 88.9-85.4 %
Motor efficiency at 3/4 load 88.0-87.8 %
Motor efficiency at full load 1 87.5-88.5 %
Motor standard IEC
Motor type 100DA
Net weight 90.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3 kW
Power factor 1 0.91-0.84
Pressure rating for connection PN 25
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated current 10
Rated flow 30.4 US gpm
Rated head 252 ft
Rated power - P2 3 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard IEC
Starting current 860-1100 %
Type 100DA
Type of connection FlexiClamp
Version A

Motor Curves

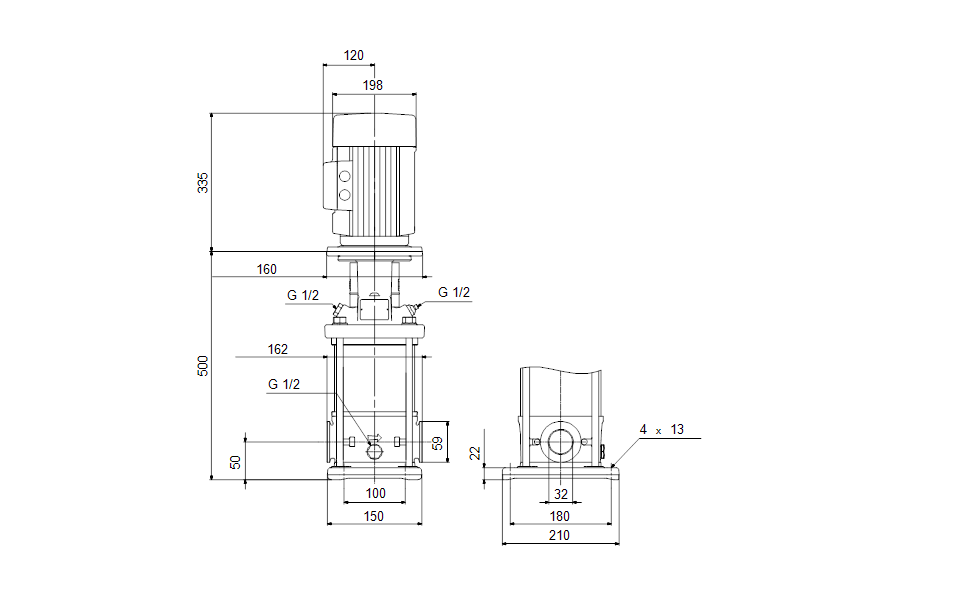

Dimensional Drawing

DWiring Diagram
