Grundfos 92579078 - CRN 5-10 A-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92579078

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92579078 CRN 5-10 A-CX-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial systems; it fits installations requiring inline high-pressure pumping and is used by service technicians and plant operators.

Key features

  • Manufactured for industrial applications and service replacement use
  • Vertical multistage centrifugal design suited to high-pressure, inline systems
  • Delivers reliable pressure boosting and smooth flow for system stability

Applications

Typical uses include pressure boosting, HVAC circulation, water supply, industrial process feeds, and other high-pressure multistage inline requirements.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92579078

EAN 5715116564289
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter NONE
Gross weight 143.0 lb
IE efficiency IE3 88
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 326.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type WEG
Net weight 129.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 30.4 US gpm
Rated head 241.8 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard NEMA
Starting current 7.8
Type WEG
Type of connection TriClamp
Version A

Motor Curves

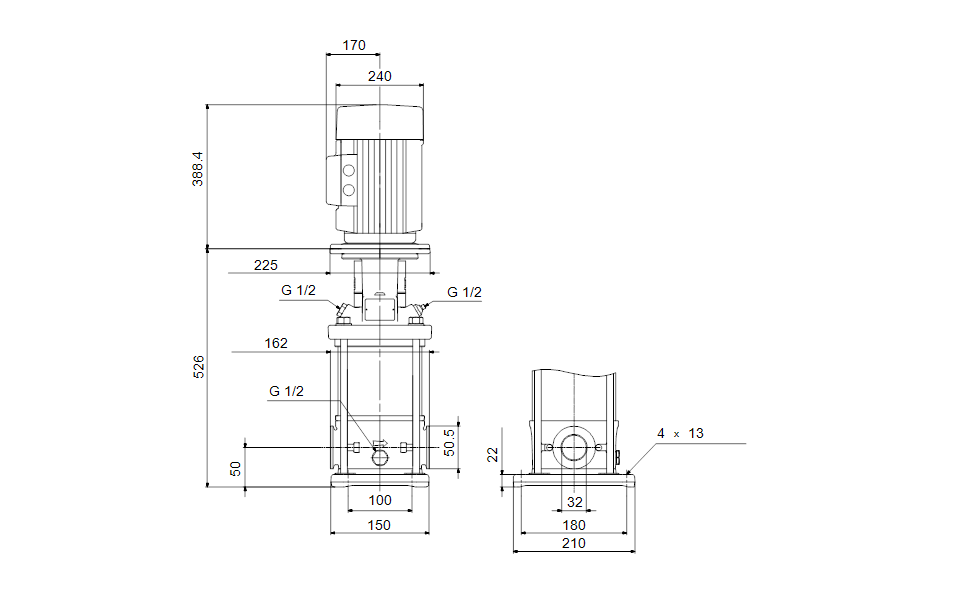

Dimensional Drawing

DWiring Diagram
