Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 45-7 A-P-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
The Grundfos 92522512 (CRN 45-7 A-P-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 198US gpm at 472.1ft. Rated 380-420DV, 3.0-Phase, 50 Hz.
Power
40HP
Voltage
380-420DV
Phase
3.0-Phase
Max Flow
198US gpm
Max Head
472.1ft
Max Pressure
435.11psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
Model Information — CRN 45-7 A-P-A-E-HQQE
Series: CRN
Model Code: CRN 45-7 A-P-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 50
Technical Specifications
| Model Number | 92522512 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Power | 40HP |
| Voltage | 380-420DV |
| Phase | 3.0-Phase |
| Frequency | 50 Hz |
| Motor Speed | 2955rpm |
| Pump Speed | 2951rpm |
| Full Load Current | 56,0-51,0A |
| Motor Type | INNOMOTICS |
| Motor Protection | PTC |
| Motor Efficiency Class | IE3 |
| Motor Efficiency | IE3 93,3% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 198US gpm |
| Nominal Head | 472.1ft |
| Max Operating Pressure | 435.11psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | DN 80 |
| Outlet Connection | DN 80 |
| Pipe Pressure Rating | PN 50 |
| Pipe Standard | PJE |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, UKCA |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 380-420DV, 3.0-Phase, 50 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 45-7 A-P-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5715115698619
- Actual impeller diameter
- 5.34 in
- Approvals
- EAC
- Approvals for drinking water
- ACS
- Bearing 1
- Graflon
- Built-in motor protection
- PTC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- P
- Connection
- PN 50
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 5.34 in
- DOE Pump Energy Index CL
- 0.89
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- FF350
- Frequency converter
- NONE
- Gross weight
- 843.0 lb
- IE efficiency
- IE3 93
- IE Efficiency class
- IE3
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -40 .. 248 °F
- Low NPSH
- N
- Mains frequency
- 50 Hz
- Material code
- A
- Material Pricing Group
- 6
- Max pressure at stated temp
- 435 psi / 250 °F
- Maximum ambient temperature
- 131 °F
- Maximum head
- 588.6 ft
- Maximum operating pressure
- 30 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Model
- B
- Motor
- FF350
- Motor efficiency at 1/2 load
- 93.4-93.4 %
- Motor efficiency at 3/4 load
- 93.6-93.6 %
- Motor efficiency at full load 1
- 93.3-93.3 %
- Motor standard
- IEC
- Motor type
- SIEMENS
- Net weight
- 732.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 30 kW
- Power factor 1
- 0.9
- Pressure rating for connection
- PN 50
- Pressure sensor
- N
- Pump
- 30 kW
- Pump speed on which pump data are based
- 2951 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 56.0-51.0 A
- Rated flow
- 198 US gpm
- Rated head
- 472.1 ft
- Rated power - P2
- 30 kW
- Rated speed
- 2955 rpm
- Rated voltage
- 3 x 380-420D V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Size of inlet connection
- DN 80
- Size of outlet connection
- DN 80
- Stages
- 7
- Standard
- IEC
- Starting current
- 660-660 %
- Support bearing
- Graflon
- Type
- SIEMENS
- Type of connection
- PJE
- Version
- A

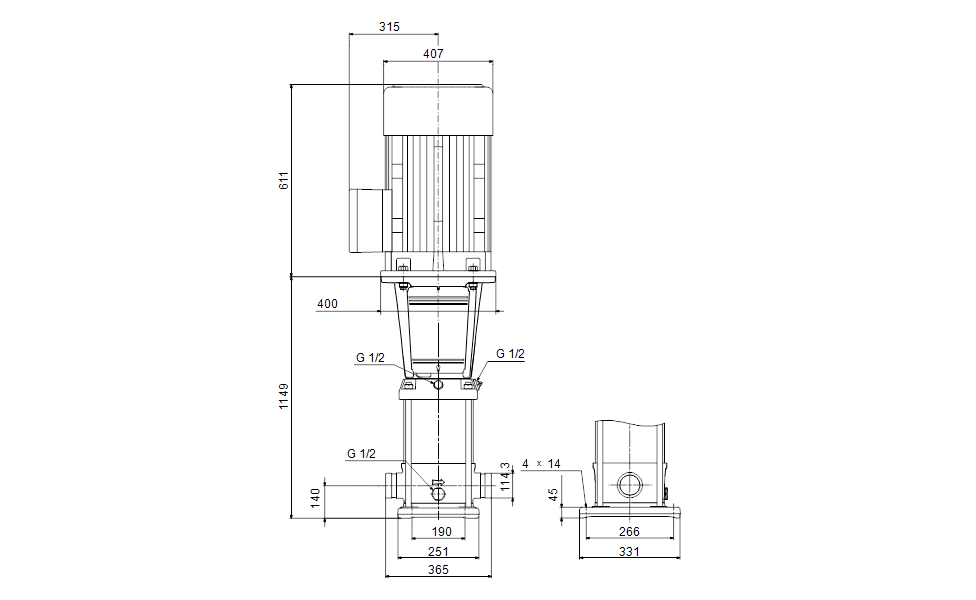

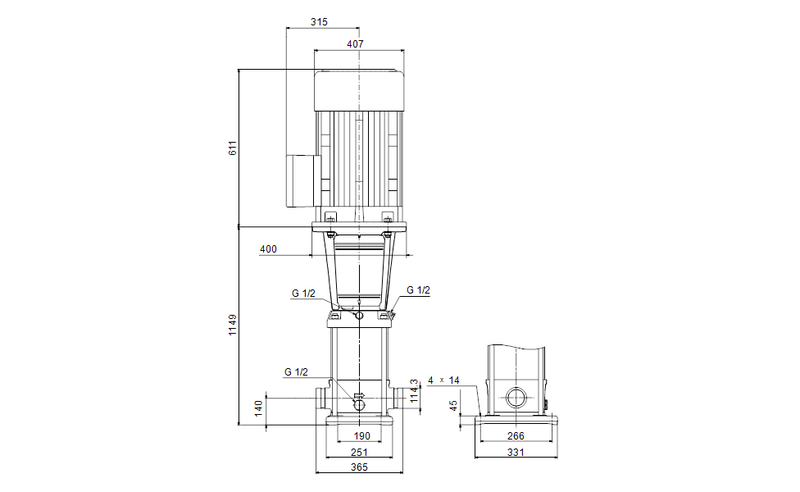

Dimensional Drawing
Wiring Diagram
