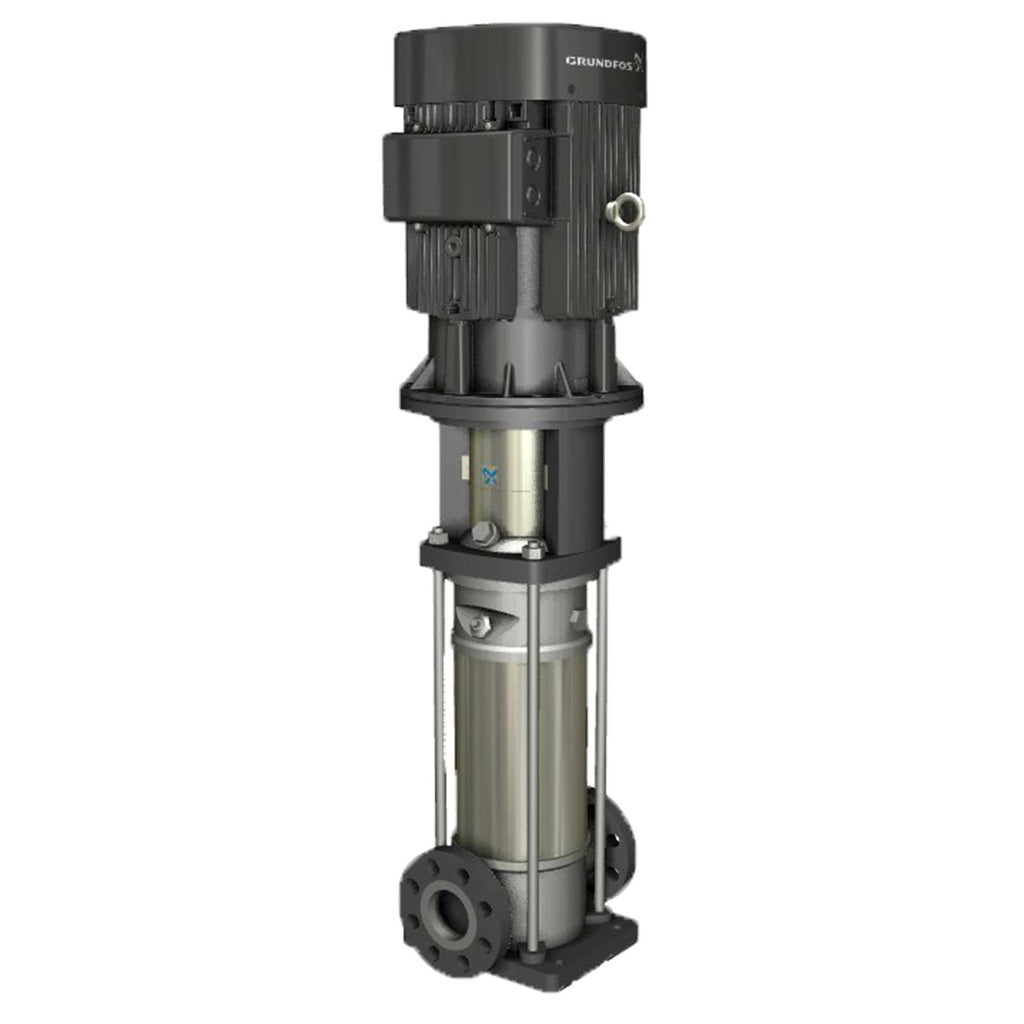

Grundfos 98663243 - CRN 45-7-2 A-G-A-E-PQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98663243

Price:
Sale price$42,556.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98663243 is a CRN 45-7-2 vertical multistage centrifugal inline pump designed for higher-pressure in-line systems; typical users include service technicians and industrial maintenance teams needing stainless-steel wetted construction and ANSI flange connections.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure duty
  • Stainless-steel wetted parts for corrosion resistance and durability
  • Inline configuration with ANSI flanges and rigid split coupling for straightforward piping and power transmission

Applications

Suitable for boiler feed, water circulation, pressure boosting, and industrial process applications where a vertical, inline multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98663243

EAN 5711499162630
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal PQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 269.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 797 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 251.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version A
Rated flow 238 US gpm
Rated head 649.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A
