Grundfos 92594475 - CRN 45-5-1 F-G-A-F-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92594475

Price:
Sale price$64,398.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92594475 CRN 45-5-1 F-G-A-F-HQQV is a vertical multistage centrifugal pump assembly designed for industrial and commercial fluid handling. It fits applications requiring high-pressure, inline multistage pumping and is used by maintenance, service technicians, and plant engineers.

Key features

  • Vertical multistage centrifugal design for compact footprint and multi-stage pressure generation
  • Configured for high-pressure, inline service and suitable for centrifugal pump systems
  • Service special designation for easier maintenance and parts replacement

Applications

Typical uses include pressure boosting, boiler feed, process water transfer, HVAC hydronic systems, and other industrial high-pressure inline duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92594475

EAN 5715116793979
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQV
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 793.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 582.4 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 775.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 30 kW
Power factor 1 0.88
Pressure rating for connection PN 40
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3525 rpm
Pump version F
Pumped liquid Water
Rated current 92.6/46.3 A
Rated flow 238 US gpm
Rated head 461.6 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 5
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version F

Motor Curves

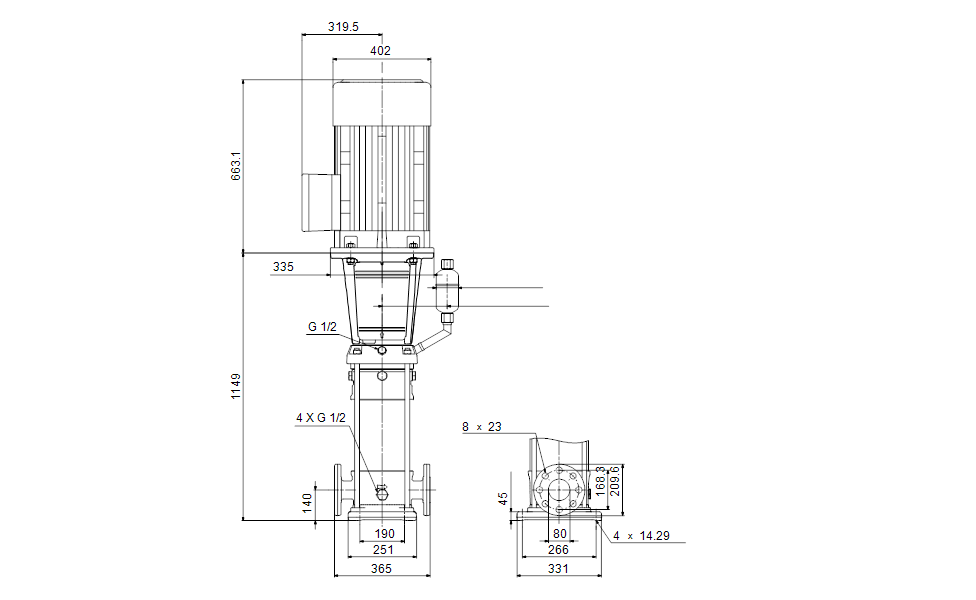

Dimensional Drawing

DWiring Diagram
