Grundfos 97964156 - CRN 45-4 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97964156

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97964156 - CRN 45-4 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97964156 - CRN 45-4 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 45-4 A-G-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710627171445
Approvals CE
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor FF350
Frequency converter NONE
Gross weight 791.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 131 °F
Maximum head 489.9 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF350
Motor efficiency at 1/2 load 90.1-90.1 %
Motor efficiency at 3/4 load 91.9-91.9 %
Motor efficiency at full load 1 92.4-92.4 %
Motor standard IEC
Motor type SIEMENS
Net weight 679.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 30 kW
Power factor 1 0.87
Pressure rating for connection PN 16
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3561 rpm
Pump version A
Pumped liquid Water
Rated current 47 A
Rated flow 238 US gpm
Rated head 385.8 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 440-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 4
Standard IEC
Starting current 850-850 %
Support bearing Graflon
Type SIEMENS
Type of connection ANSI
Version A

Motor Curves

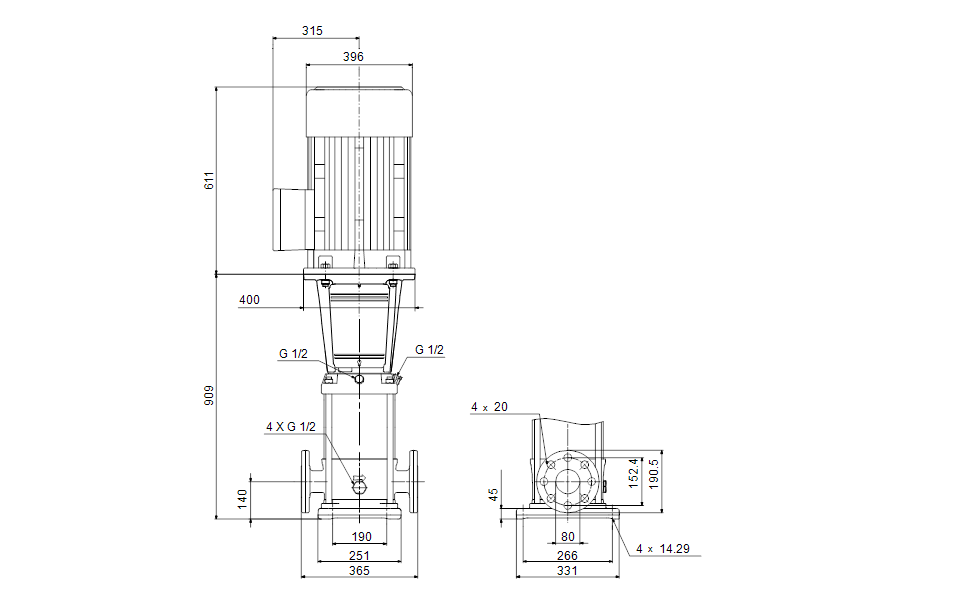

Dimensional Drawing

DWiring Diagram
