Grundfos 99382716 - CRN 45-4-2 A-G-H-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99382716

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99382716 - CRN 45-4-2 A-G-H-V-HQQV is a vertical multistage centrifugal pump suited for industrial and commercial systems where high-pressure, in-line pumping is required. Technicians and service professionals commonly install this model in booster, process, and water supply applications.

Key features

  • Manufactured by Grundfos for a range of industrial applications
  • Vertical, multistage centrifugal design for high-pressure, in-line performance
  • Delivers reliable pressure boosting and smooth flow for extended system life

Applications

Typical uses include boiler feed, pressure boosting, process water transfer, and other high-pressure in-line systems where a vertical multistage pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99382716

EAN 5713828205759
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 196.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 436.7 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 178.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3541 rpm
Pump version A
Rated flow 238 US gpm
Rated head 341.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 4
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

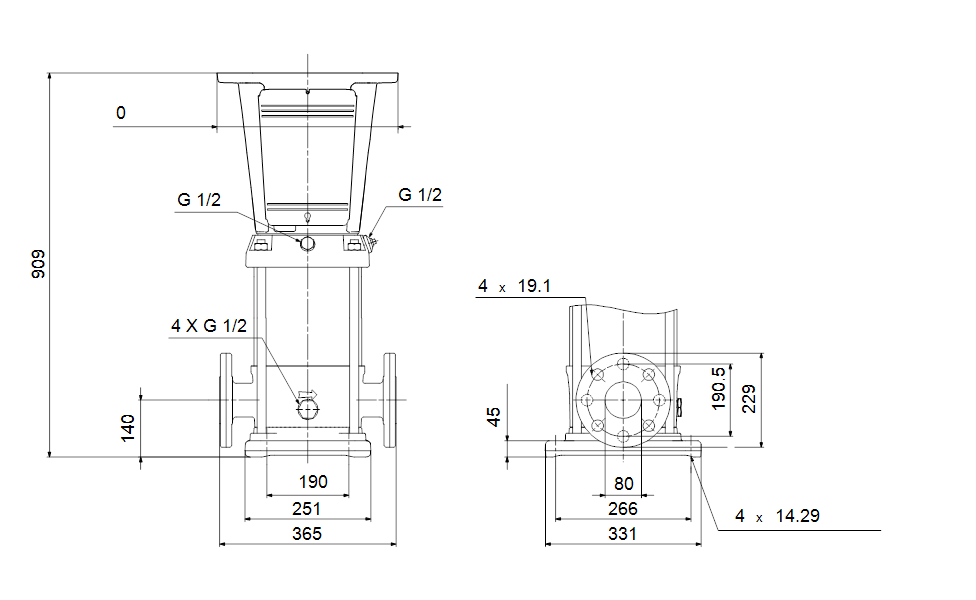

Dimensional Drawing
