Grundfos 96534532 - CRN 45-4-2 A-F-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96534532

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96534532 - CRN 45-4-2 A-F-A-V-HQQV is a vertical, multistage centrifugal pump designed for industrial fluid-handling systems where high pressure and in-line installation are required. Technicians and maintenance teams use this unit for pressurization and transfer tasks.

Key features

  • Multistage centrifugal design for sustained high-pressure delivery
  • Vertical, in-line configuration suited for compact system layouts and high-pressure applications
  • Service-special components that simplify maintenance and replacement

Applications

Typical uses include high-pressure water supply, boiler feed, industrial process boosting, and other applications requiring reliable vertical multistage performance.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96534532

EAN 5700397513224
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF300
Frequency converter NONE
Gross weight 225.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 303.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor standard IEC
Net weight 175.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 15 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 2923 rpm
Pump version A
Pumped liquid Water
Rated flow 198 US gpm
Rated head 236.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 4
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

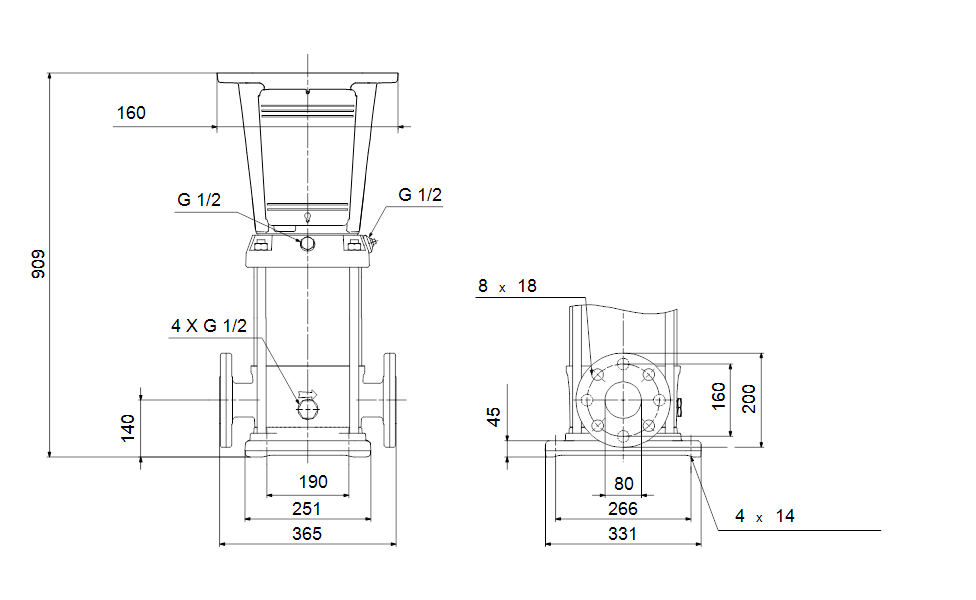

Dimensional Drawing
