Grundfos 99013064 - CRN 45-3 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99013064

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99013064 - CRN 45-3 A-G-A-V-HQQV is a vertical, multistage centrifugal pump designed for industrial fluid handling and high-pressure in-line service. It suits maintenance technicians and plant engineers seeking a replacement unit from the original equipment manufacturer.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical multistage centrifugal design for in-line, high-pressure service
  • Delivers reliable high-pressure fluid transfer and improved system uptime

Applications

Typical uses include industrial process boosting, high-pressure transfer, HVAC circulation, and in-line pumping systems where vertical multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99013064

EAN 5712605083047
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 165.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 91.54 ft
Maximum operating pressure 16 bar
Model B
Motor 182TC
Motor standard NEMA
Net weight 147.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 1760 rpm
Pump version A
Rated flow 119 US gpm
Rated head 70.54 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

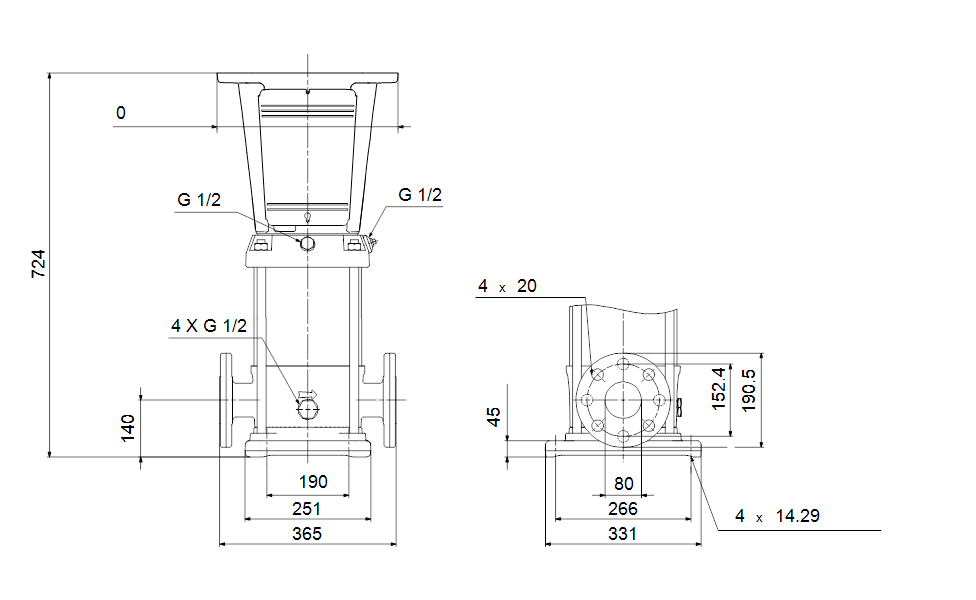

Dimensional Drawing
