Grundfos 99049538 - CRN 45-3-2 A-G-A-K-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99049538

Price:
Sale price$38,641.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99049538 - CRN 45-3-2 A-G-A-K-HQQK is a vertical, multistage centrifugal pump assembly used in high-pressure inline applications; it fits systems requiring reliable multi-stage pumping for industrial service.

Key features

  • Manufactured by Grundfos for industrial and service applications
  • Designed as a vertical, in-line multistage centrifugal configuration for high-pressure use
  • Provides consistent pressure boosting and smooth flow for process and utility systems

Applications

Typical uses include high-pressure water boosting, boiler feed, industrial process circulation, and other vertical multistage centrifugal pump duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99049538

EAN 5712605781172
Actual impeller diameter 5.34 in
Approvals CE
Bearing 1 Graflon
Code for rubber K
Code for shaft seal HQQK
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 165.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 79.73 ft
Maximum operating pressure 16 bar
Model B
Motor 182TC
Motor standard NEMA
Net weight 147.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 1760 rpm
Pump version A
Rated flow 119 US gpm
Rated head 61.68 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

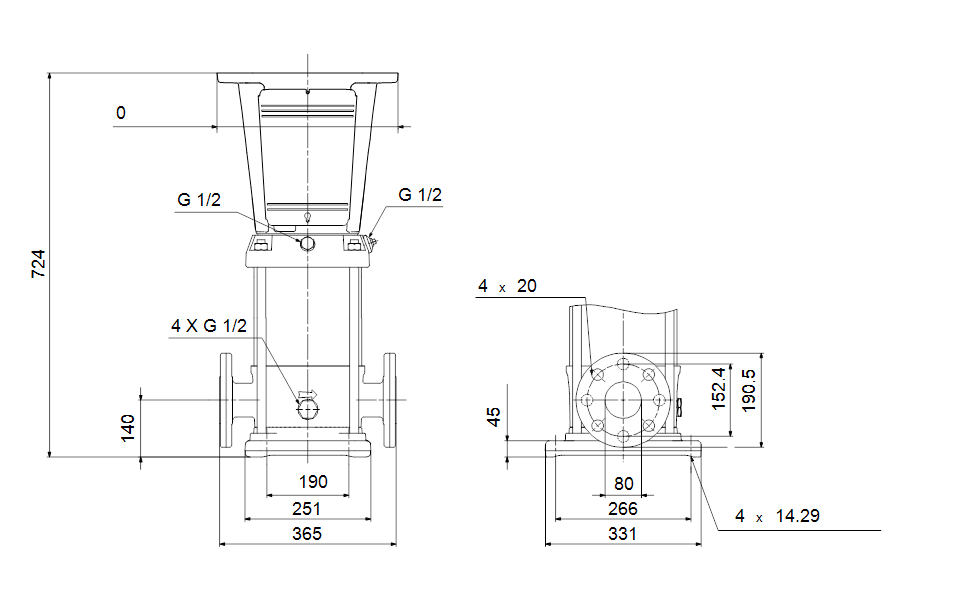

Dimensional Drawing
