Grundfos 92767828 - CRN 45-3-2 A-G-A-E-HUUE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92767828

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92767828 - CRN 45-3-2 A-G-A-E-HUUE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its advanced design, the CRN 45-3-2 A-G-A-E-HUUE delivers optimal performance while minimizing energy consumption, making it a cost-effective solution for your pumping needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you every step of the way.

EAN 5715119321254
Actual impeller diameter 5.34 in
Approvals EAC
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HUUE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 431.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -40 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 220.5 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 91.3-91.2 %
Motor efficiency at 3/4 load 91.8-91.8 %
Motor efficiency at full load 1 91.2-91.2 %
Motor standard IEC
Motor type 160BA
Net weight 358.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 11 kW
Power factor 1 0.88-0.84
Pressure rating for connection PN 16
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 2924 rpm
Pump version A
Pumped liquid Water
Rated current 36
Rated flow 198 US gpm
Rated head 170.3 ft
Rated power - P2 11 kW
Rated speed 2940-2950 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 3
Standard IEC
Starting current 660-780 %
Support bearing Graflon
Type 160BA
Type of connection ANSI
Version A

Motor Curves

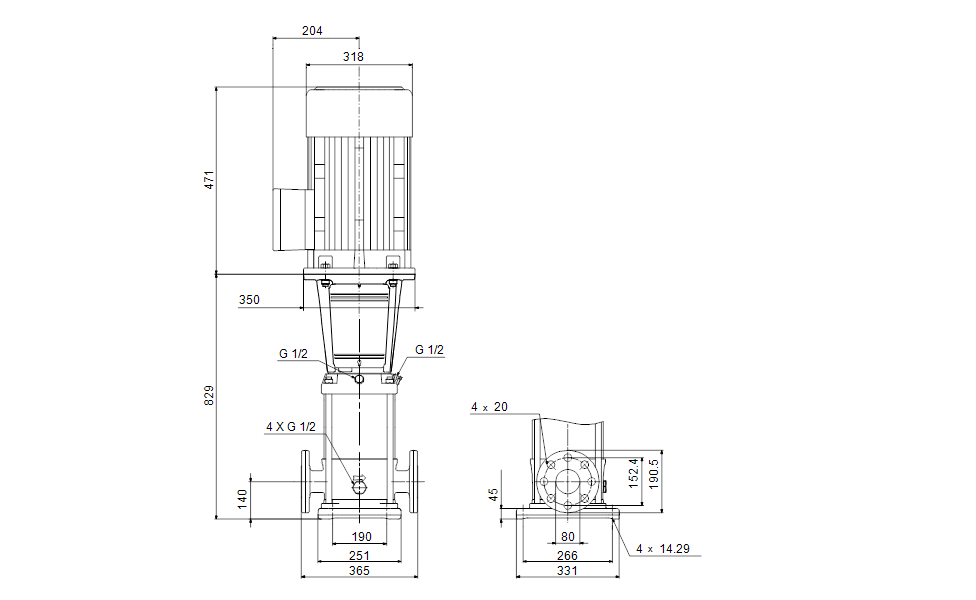

Dimensional Drawing

DWiring Diagram
