Grundfos 96534300 - CRN 45-2-2 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96534300

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96534300 is a vertical, multistage centrifugal pump built for industrial and commercial fluid transfer applications, often used by service technicians and plant maintenance teams.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure pumping
  • Service-special designation indicating suitability for repair and refurbishment programs
  • Inline-compatible configuration for straightforward integration and maintenance

Applications

Typical uses include high-pressure water supply, boiler feed, pressure boosting, and process circulation in industrial, commercial, and municipal systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96534300

EAN 5700397500071
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF265
Frequency converter NONE
Gross weight 172.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 135.8 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor standard IEC
Net weight 136.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 5.5 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated flow 198 US gpm
Rated head 100.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 2
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

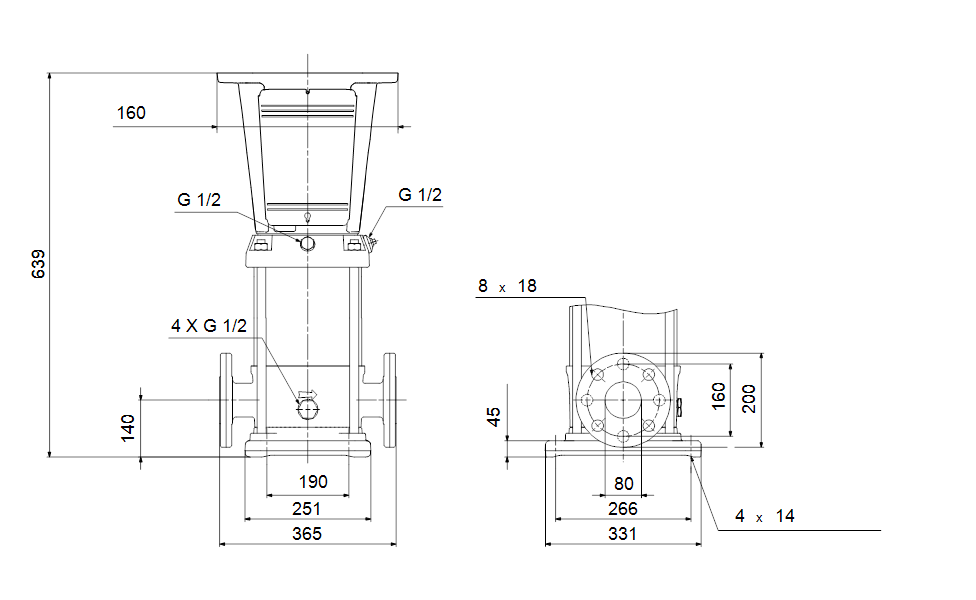

Dimensional Drawing
