Grundfos 92722066 - CRN 45-2-1 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92722066

Price:
Sale price$28,656.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92722066 - CRN 45-2-1 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92722066 - CRN 45-2-1 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CRN 45-2-1 A-G-A-V-HQQV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special, High Pressure, and Vertical Multistage types, ensuring versatility in its applications.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92722066. If you encounter any difficulties in identifying the right item, our team is here to help!

EAN 5715118650997
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection PTO
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 507.0 lb
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 222.5 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at 1/2 load 0.9
Motor efficiency at 3/4 load 0.905
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type WEG
Net weight 489.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 11 kW
Power factor 1 0.87
Pressure rating for connection PN 16
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 37
Rated flow 238 US gpm
Rated head 169.6 ft
Rated power - P2 11 kW
Rated speed 3540 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Starting current 680-680 %
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

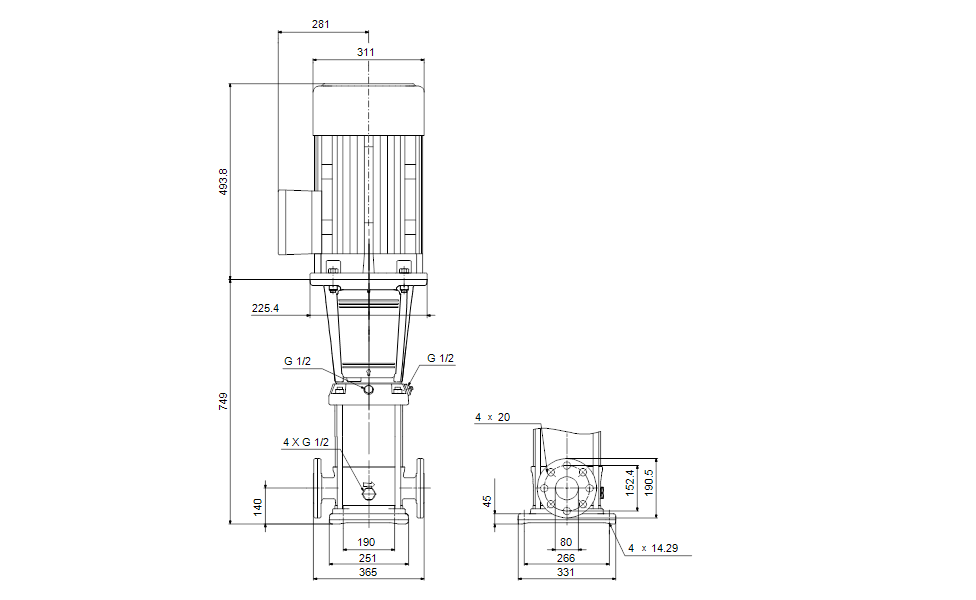

Dimensional Drawing

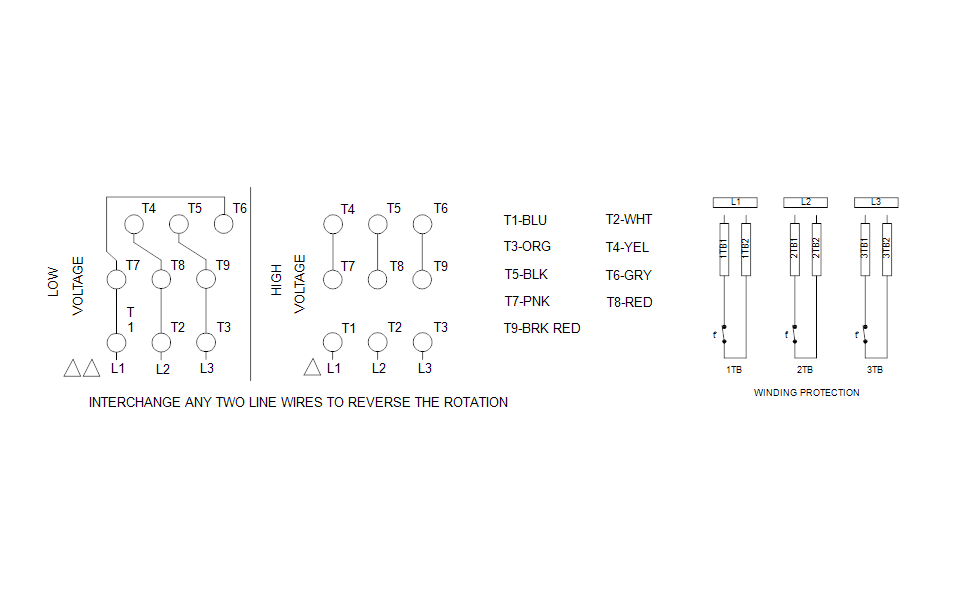

DWiring Diagram
