Grundfos 99456741 - CRN 32-9 S-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $21,153.60
GRUNDFOSSKU: 99456741

Price:
Sale price$22,916.40 Regular price$44,070.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99456741 is a vertical, multistage centrifugal pump assembly suited for industrial and commercial fluid handling. The CRN 32-9 S-P-A-E-HQQE model is used by contractors and maintenance teams needing high-pressure, in-line pumping solutions.

Key features

  • Multistage centrifugal design for higher head in compact footprint
  • Vertical orientation suitable for in-line and space-saving installations
  • Provides reliable high-pressure performance for process and service applications

Applications

Typical uses include boiler feed, pressure boosting, HVAC systems, industrial process circulation, and other high-pressure in-line duties where a vertical multistage centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99456741

EAN 5713829425279
Actual impeller diameter 4.66 in
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Frequency converter NONE
Gross weight 825.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 250 °F
Maximum head 833 ft
Maximum operating pressure 50 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor No 99456699
Motor standard IEC
Net weight 712.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 30 kW
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3561 rpm
Pump version S
Pumped liquid Water
Rated flow 159 US gpm
Rated head 659.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Stages 9
Standard IEC
Type of connection PJE
Version S

Motor Curves

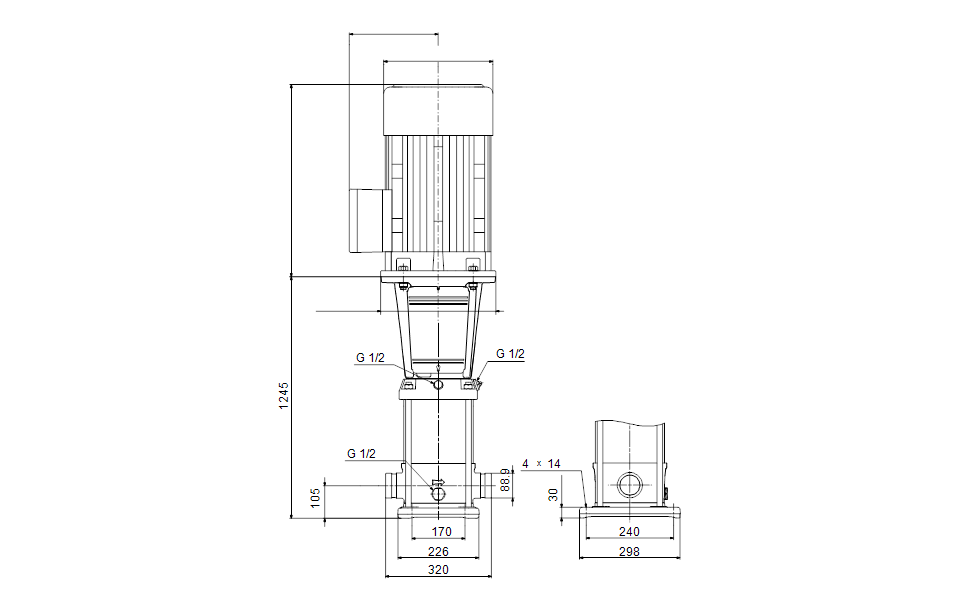

Dimensional Drawing
