Grundfos 92722725 - CRN 32-8 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92722725

Price:
Sale price$47,741.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92722725 - CRN 32-8 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92722725 - CRN 32-8 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 32-8 A-P-A-V-HQQV model is perfect for applications requiring consistent flow and pressure. Its versatility allows it to be used in various settings, ensuring that it meets the demands of your specific requirements.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715118661429
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange size for motor 324TC
Frequency converter NONE
Gross weight 740.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 742.5 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 722.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 30 kW
Power factor 1 0.88
Pressure rating for connection PN 50
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3541 rpm
Pump version A
Pumped liquid Water
Rated current 92.6/46.3 A
Rated flow 159 US gpm
Rated head 587.6 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 8
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection PJE
Version A

Motor Curves

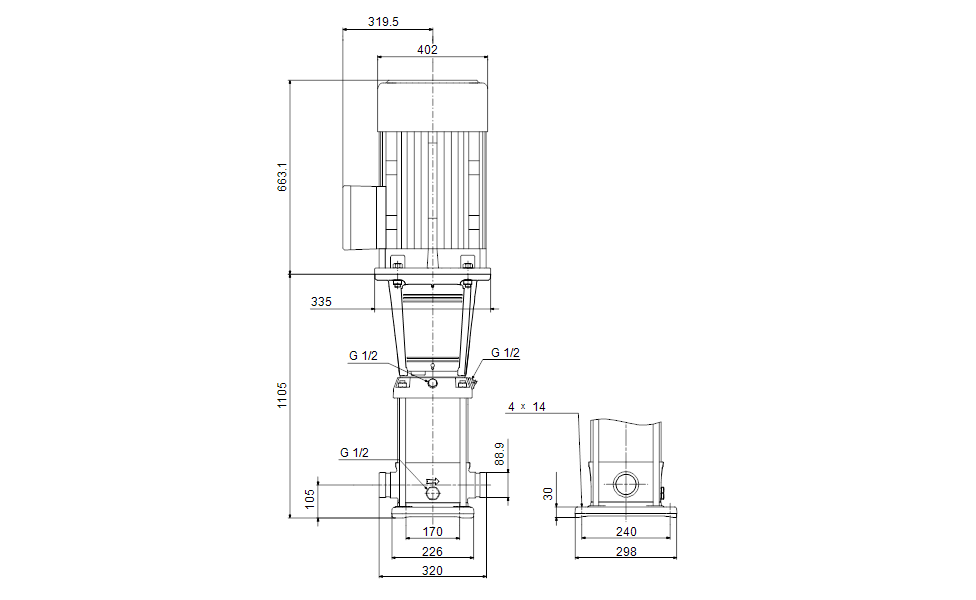

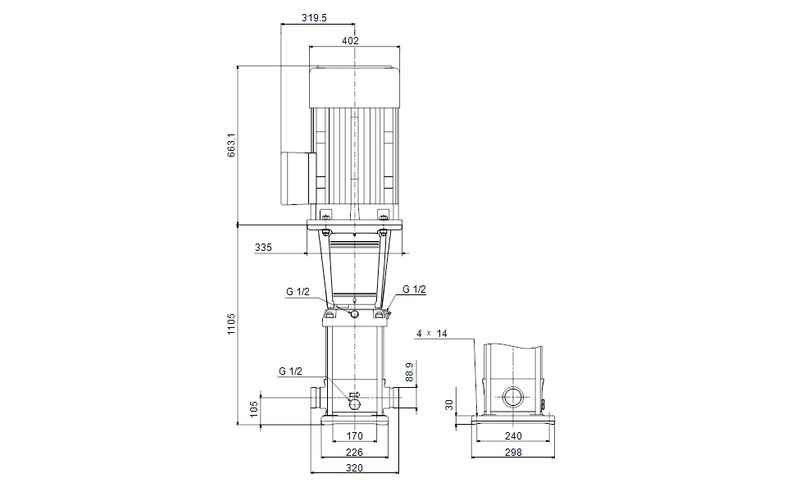

Dimensional Drawing

DWiring Diagram
