Grundfos 92544753 - CRN 32-8 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92544753

Price:
Sale price$39,945.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92544753 CRN 32-8 P-G-A-E-HQQE is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling where high pressure and compact footprint are required. Typical users include maintenance teams and service contractors.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical multistage, in-line centrifugal design suitable for high-pressure service
  • Delivers reliable pressure boosting and efficient staged pumping for system stability

Applications

Booster systems, pressure boosting, water transfer, industrial process feed, and other high-pressure in-line vertical multistage duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92544753

EAN 5715116018560
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 608.0 lb
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 742.5 ft
Maximum operating pressure 30 bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type WEG
Net weight 590.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 22 kW
Power factor 1 0.89
Pressure rating for connection PN 40
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 3541 rpm
Pump version P
Pumped liquid Water
Rated current 67.6/33.8 A
Rated flow 159 US gpm
Rated head 587.6 ft
Rated power - P2 22 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 8
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version P

Motor Curves

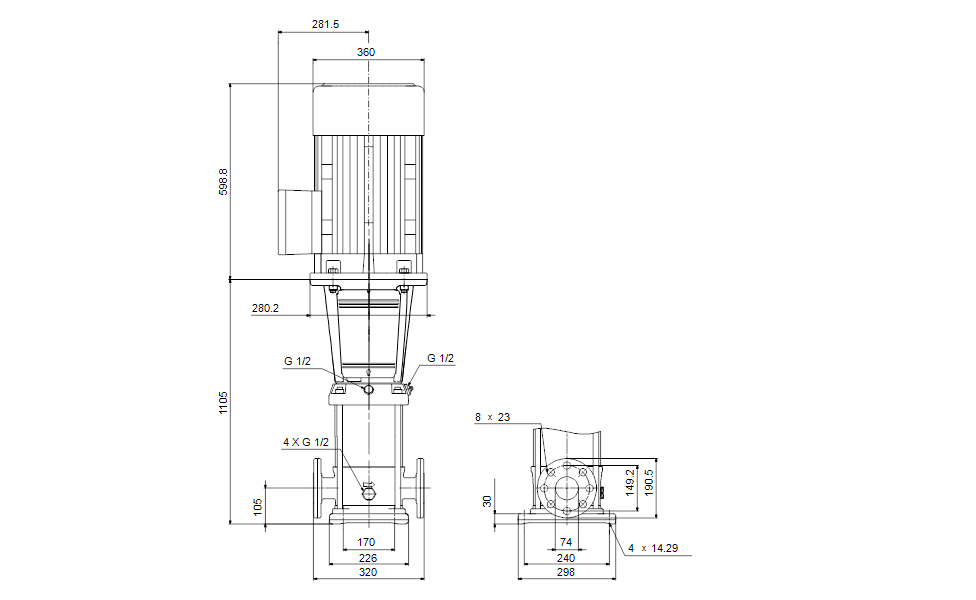

Dimensional Drawing

DWiring Diagram
