Grundfos 92721462 - CRN 32-7-2 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92721462

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92721462 - CRN 32-7-2 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CRN 32-7-2 A-G-A-E-HQQE model is ideal for high-pressure applications, ensuring optimal fluid transfer and consistent performance. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special and Multi-Stage types, making it a versatile choice for various operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92721462 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118641278
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 595.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 609.6 ft
Maximum operating pressure 30 bar
Model B
Motor 284TC
Motor No 99910584
Motor standard NEMA
Net weight 577.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 22 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 3521 rpm
Pump version A
Pumped liquid Water
Rated flow 159 US gpm
Rated head 475.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

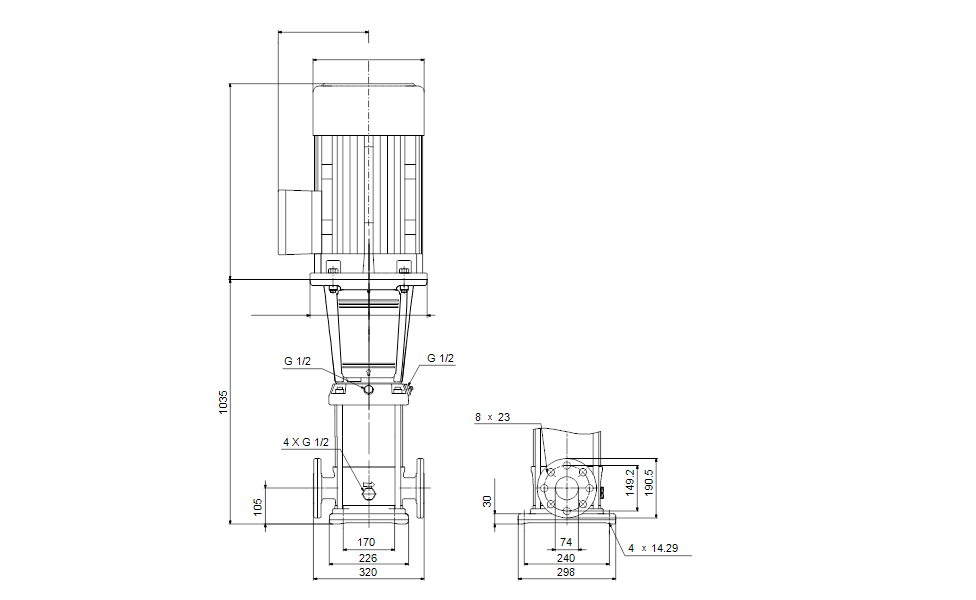

Dimensional Drawing
