Grundfos 92627025 - CRN 32-5 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92627025

Price:
Sale price$32,186.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92627025 - CRN 32-5 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92627025 - CRN 32-5 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CRN 32-5 A-P-A-V-HQQV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special, Single & Multi-Stage Centrifugal Pumps, and High Pressure applications, ensuring versatility in its use.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

EAN 5715117286623
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange size for motor 254TC
Frequency converter NONE
Gross weight 395.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 462.9 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at 1/2 load 0.9
Motor efficiency at 3/4 load 0.91
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type WEG
Net weight 377.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.91
Pressure rating for connection PN 50
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3497 rpm
Pump version A
Pumped liquid Water
Rated current 45.4/22.7 A
Rated flow 159 US gpm
Rated head 360.9 ft
Rated power - P2 15 kW
Rated speed 3515 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 5
Standard NEMA
Starting current 6.6
Support bearing Graflon
Type WEG
Type of connection PJE
Version A

Motor Curves

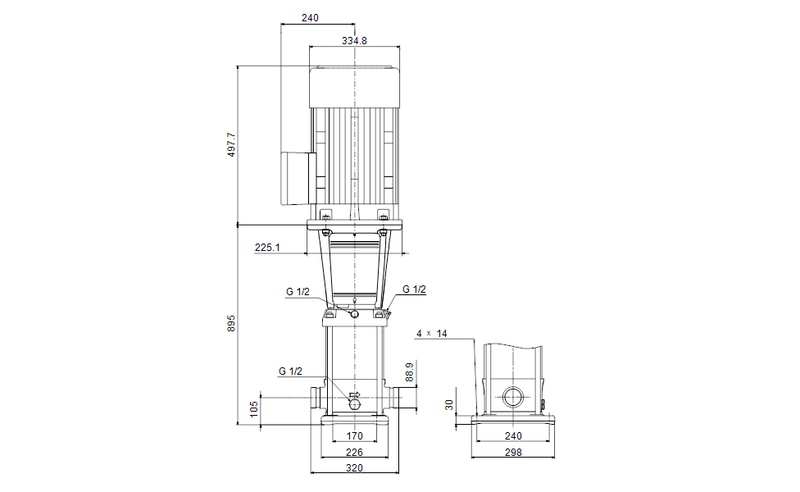

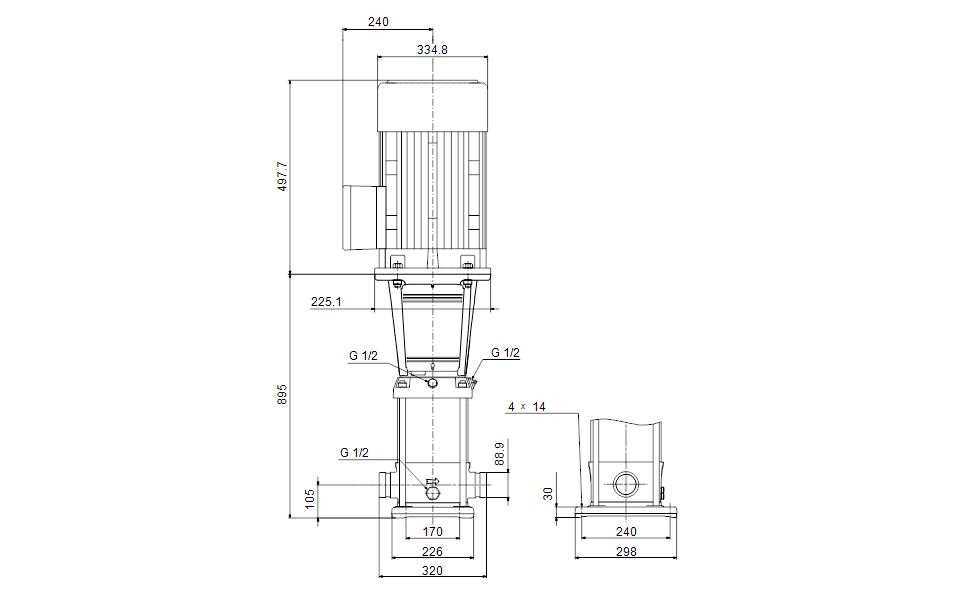

Dimensional Drawing

DWiring Diagram
