Grundfos 98413297 - CRN 32-4 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $7,446.24
GRUNDFOSSKU: 98413297

Price:
Sale price$8,066.76 Regular price$15,513.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98413297 - CRN 32-4 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

This model features a robust construction that ensures durability and longevity, suitable for demanding environments. The CRN series is known for its versatility, allowing it to handle various fluids and applications with ease. Whether you need a pump for water supply, irrigation, or industrial processes, the CRN 32-4 A-G-A-E-HQQE is a dependable solution.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the efficiency and reliability of the Grundfos CRN 32-4 A-G-A-E-HQQE and elevate your pumping solutions today!

EAN 5711494599301
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 297.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 255.3 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at 1/2 load 90.8-90.4 %
Motor efficiency at 3/4 load 90.8-90.9 %
Motor efficiency at full load 1 90.1-90.4 %
Motor standard IEC
Motor type 132EA
Net weight 246.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.88-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 25
Rated flow 132 US gpm
Rated head 193.9 ft
Rated power - P2 7.5 kW
Rated speed 2910-2920 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 4
Standard IEC
Starting current 780-910 %
Support bearing Graflon
Type 132EA
Type of connection ANSI
Version A

Motor Curves

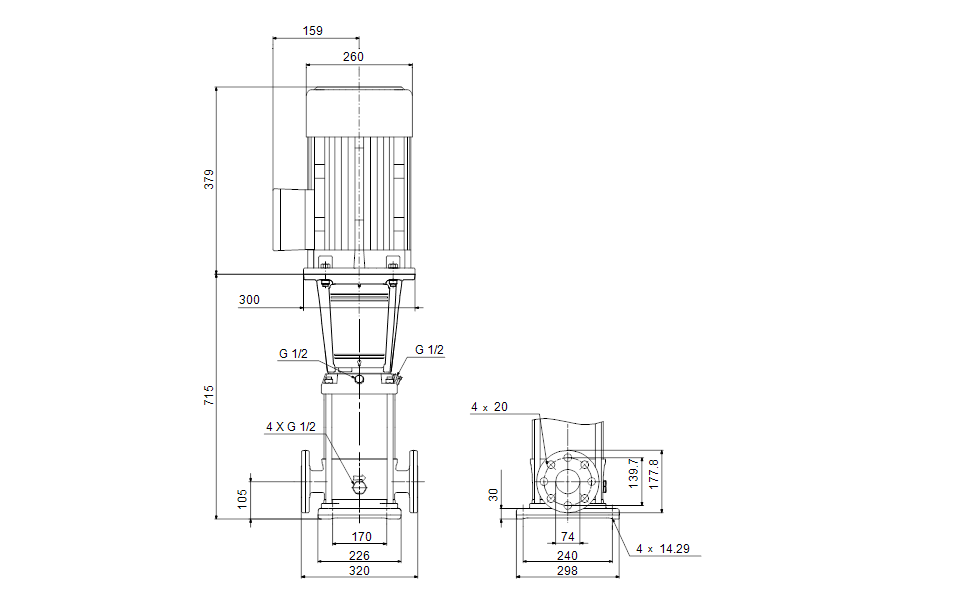

Dimensional Drawing

DWiring Diagram
