Grundfos 96900132 - CRN 32-3-2 A-F-H-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96900132

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96900132 is a CRN 32-3-2 A-F-H-E-HQQE vertical multistage centrifugal pump intended for industrial and commercial fluid handling where reliable high-pressure performance is required.

Key features

  • Manufactured by Grundfos for industrial applications
  • Vertical, inline multistage centrifugal design for high-pressure service
  • Delivers efficient multi-stage operation for consistent system pressures

Applications

Suitable for boiler feed, high-pressure water transfer, process boosting, and other industrial or commercial pumping systems that call for vertical multistage centrifugal pumps.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96900132

EAN 5700313241972
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 410.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 241.5 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 91.0-90.3 %
Motor efficiency at 3/4 load 91.2-91.4 %
Motor efficiency at full load 1 91.0-91.0 %
Motor standard IEC
Motor type 160MB
Net weight 337.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 11 kW
Power factor 1 0.88-0.83
Pressure rating for connection PN 40
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3529 rpm
Pump version A
Pumped liquid Water
Rated current 20
Rated flow 159 US gpm
Rated head 180.1 ft
Rated power - P2 11 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 400-480D/690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 3
Standard IEC
Starting current 640-890 %
Support bearing Graflon
Type 160MB
Type of connection DIN
Version A

Motor Curves

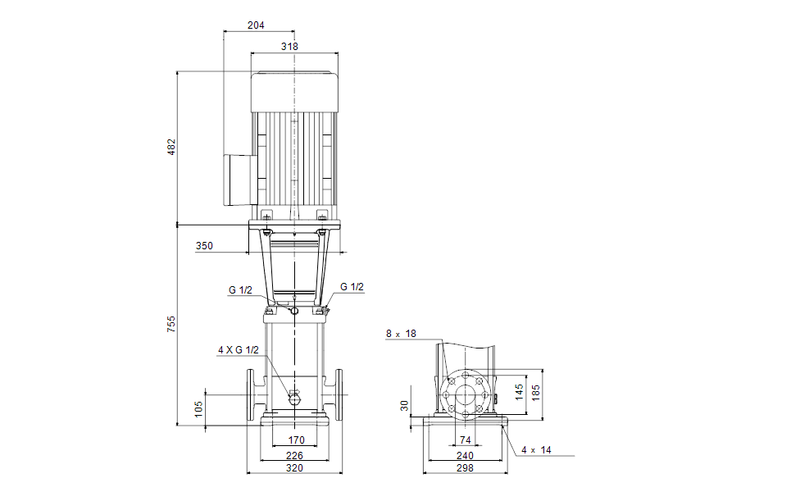

Dimensional Drawing

DWiring Diagram
