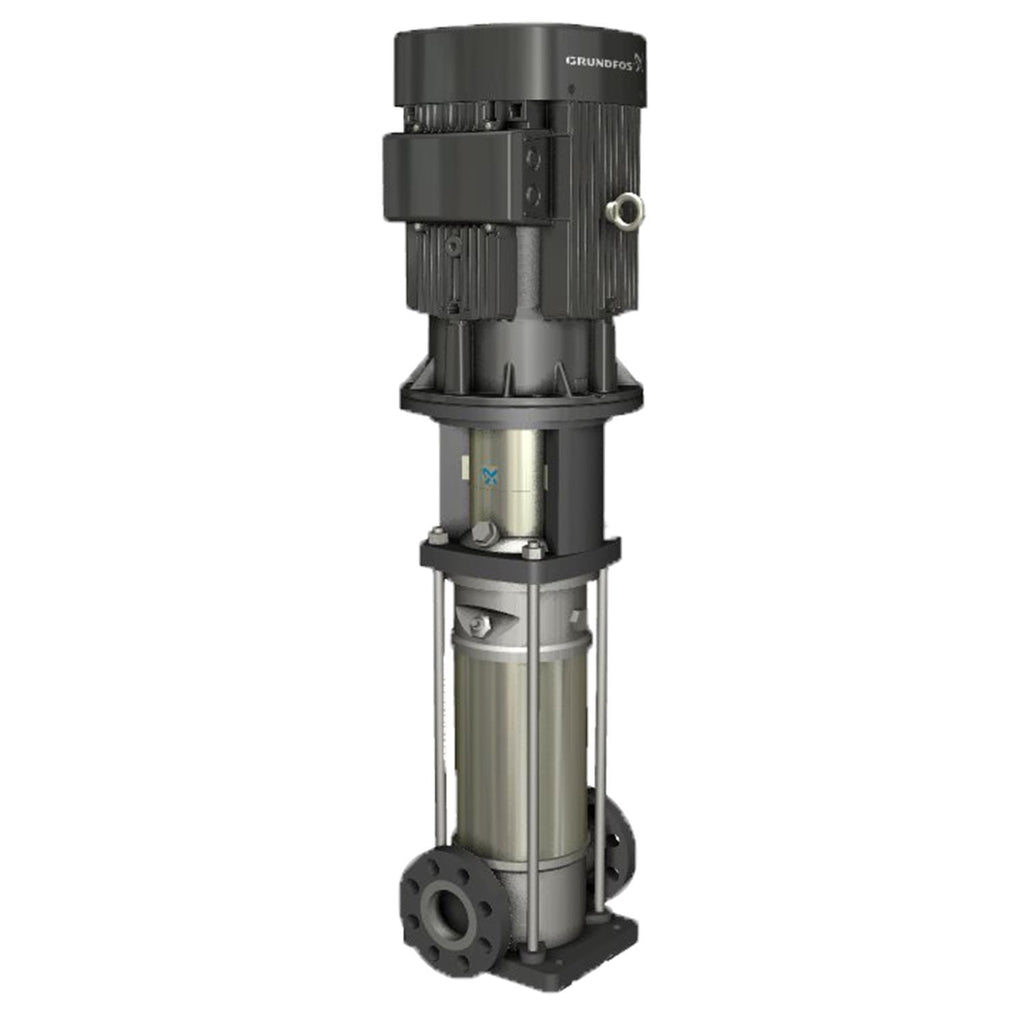

Grundfos 99397592 - CRN 32-2 A-G-A-V-PQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99397592

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99397592 - CRN 32-2 A-G-A-V-PQQV is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling where compact, high-pressure performance is needed. Service technicians and plant engineers commonly use this unit for pressure boosting and process circulation.

Key features

  • Manufactured for industrial applications and routine service replacements
  • Vertical, multistage centrifugal configuration for compact footprint and high head
  • Provides reliable high-pressure boosting and stable flow in inline systems

Applications

Suitable for pressure boosting, boiler feed, HVAC circulation, process water transfer, and other high-pressure inline or vertical multistage duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99397592

EAN 5713828452979
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal PQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 166.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 183.4 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor standard NEMA
Net weight 148.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3467 rpm
Pump version A
Rated flow 159 US gpm
Rated head 132.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A
