Grundfos 92680162 - CRN 32-2 A-F-H-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92680162

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92680162 - CRN 32-2 A-F-H-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92680162 - CRN 32-2 A-F-H-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure systems, ensuring efficient and reliable operation.

With its robust construction and advanced design, the CRN 32-2 A-F-H-V-HQQV is perfect for applications requiring consistent flow and pressure. This pump is suitable for both water and other liquids, making it versatile for different operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5715118038245
Actual impeller diameter 4.66 in
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange size for motor FF265
Frequency converter NONE
Gross weight 151.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code H
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 187.7 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor standard IEC
Net weight 115.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated flow 159 US gpm
Rated head 141.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 2
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

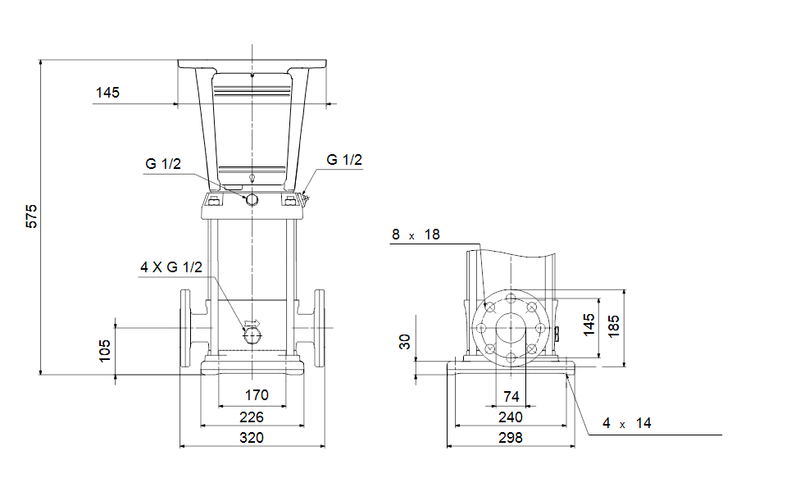

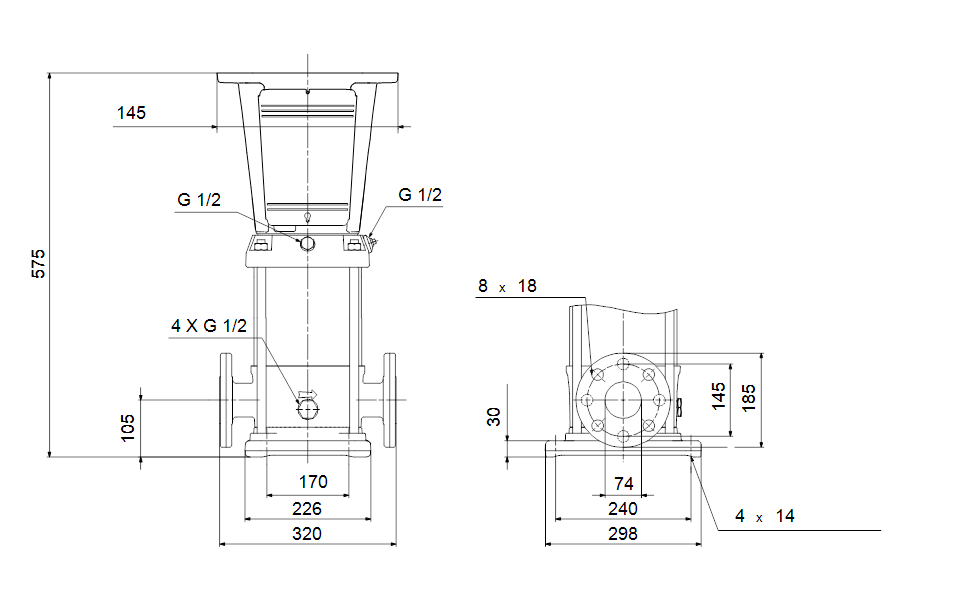

Dimensional Drawing
