Grundfos 98413318 - CRN 32-13 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $18,904.32
GRUNDFOSSKU: 98413318

Price:
Sale price$20,479.68 Regular price$39,384.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98413318 - CRN 32-13 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model features a robust construction and advanced design, ensuring durability and longevity in demanding environments. The CRN series is known for its versatility and efficiency, making it suitable for various fluid handling tasks.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494599844
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FF350
Frequency converter NONE
Gross weight 875.0 lb
IE efficiency IE3 93
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 131 °F
Maximum head 836 ft
Maximum operating pressure 30 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF350
Motor efficiency at 1/2 load 93.4-93.4 %
Motor efficiency at 3/4 load 93.6-93.6 %
Motor efficiency at full load 1 93.3-93.3 %
Motor standard IEC
Motor type SIEMENS
Net weight 763.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 30 kW
Power factor 1 0.9
Pressure rating for connection PN 40
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 2951 rpm
Pump version A
Pumped liquid Water
Rated current 56.0-51.0 A
Rated flow 132 US gpm
Rated head 667 ft
Rated power - P2 30 kW
Rated speed 2955 rpm
Rated voltage 3 x 380-420D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 13
Standard IEC
Starting current 660-660 %
Support bearing Graflon
Type SIEMENS
Type of connection ANSI
Version A

Motor Curves

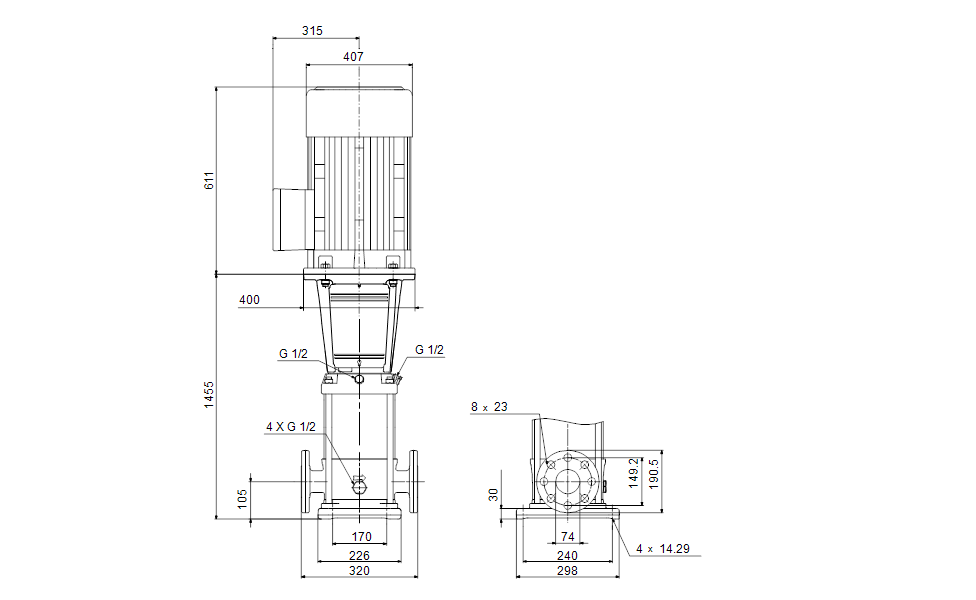

Dimensional Drawing

DWiring Diagram
