Grundfos 98335845 - CRN 32-11-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98335845

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-11-2 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5711493194910
Actual impeller diameter 118.4 mm
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 118.4 mm
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 107.0 kg
Impeller Stainless steel
Impellers 2
Liquid temperature range -20 .. 90 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 30 bar / 90 °C
Maximum head 298.1 m
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 99.0 kg
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3525 rpm
Pump version A
Rated flow 36 m³/h
Rated head 234.7 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 11
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

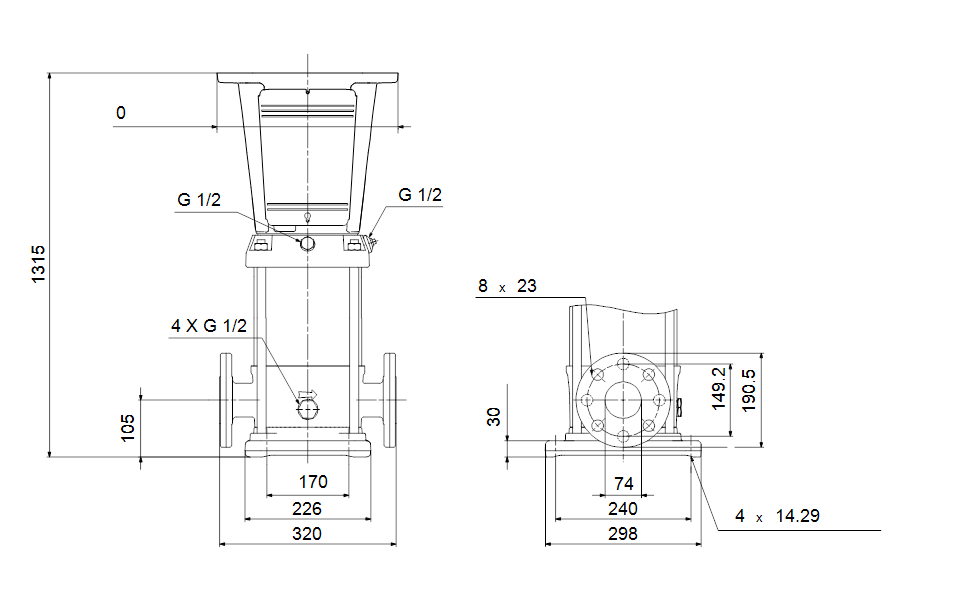

Dimensional Drawing
