Grundfos 98775848 - CRN 32-1-1 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98775848

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-1-1 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5712601216371
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 203.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 70.54 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT115
Motor No 99540163
Motor standard IEC
Net weight 152.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 159 US gpm
Rated head 51.18 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 1
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

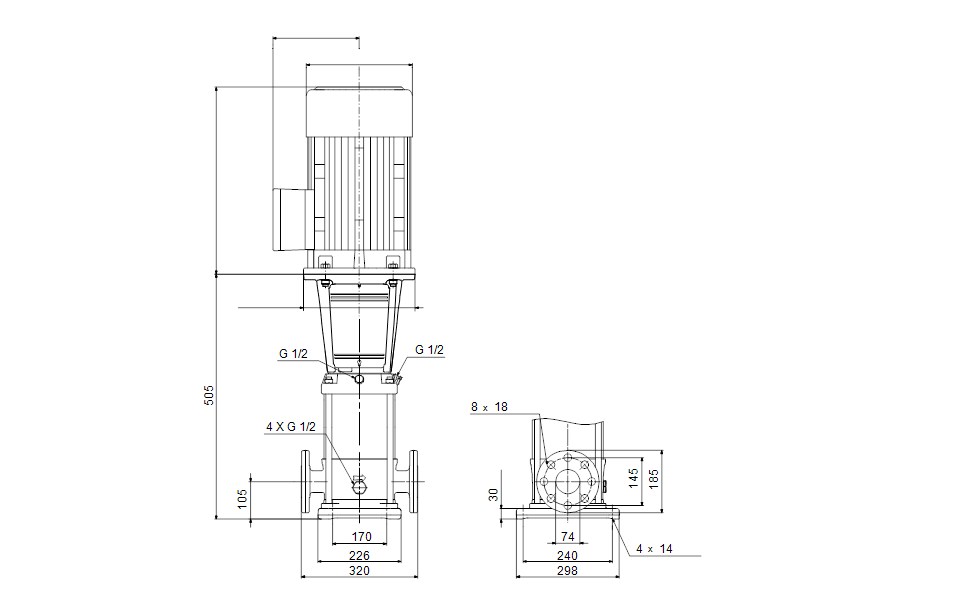

Dimensional Drawing
