Grundfos 96542243 - CRN 32-1-1 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96542243

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 32-1-1 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5700397990841
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Flange size for motor FT115
Frequency converter NONE
Gross weight 65.5 kg
Impeller Stainless steel
Impellers 1
Liquid temperature range -40 .. 120 °C
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 16 bar / 120 °C
Maximum head 21.5 m
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT115
Motor standard IEC
Net weight 49.3 kg
Number of reduced-diameter impellers 1
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated flow 36 m³/h
Rated head 15.6 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 1
Standard IEC
Support bearing Graflon
Type of connection DIN
Version A

Motor Curves

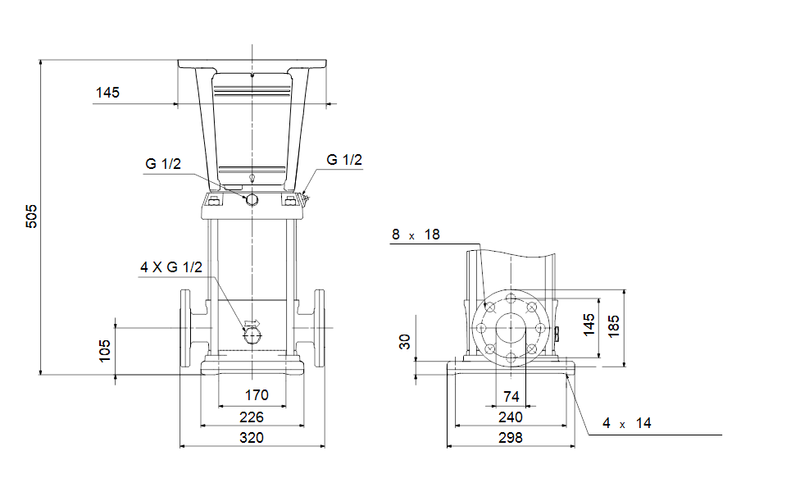

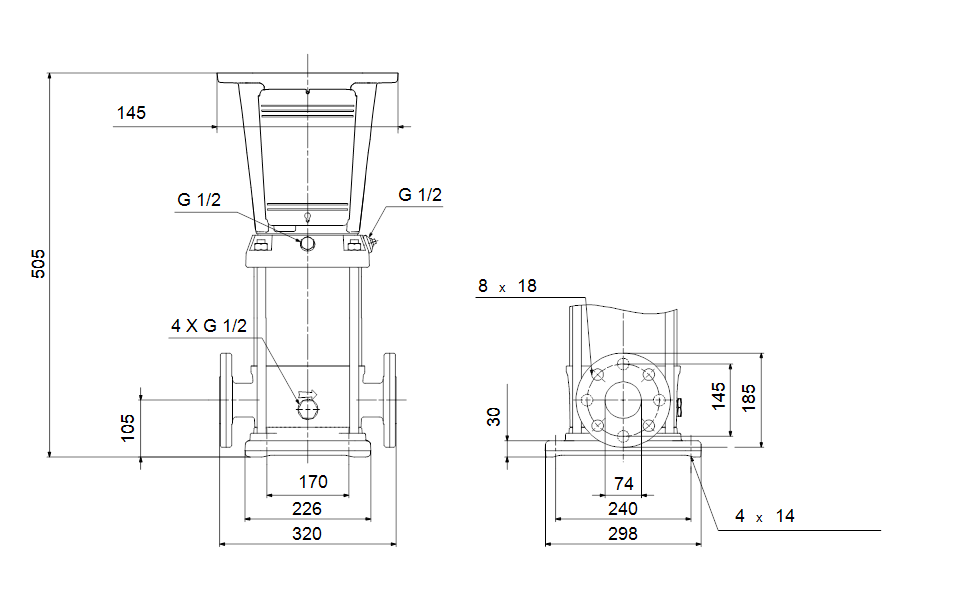

Dimensional Drawing
