Grundfos 99853461 - CRN 3-9 M-FGJ-A-V | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99853461

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

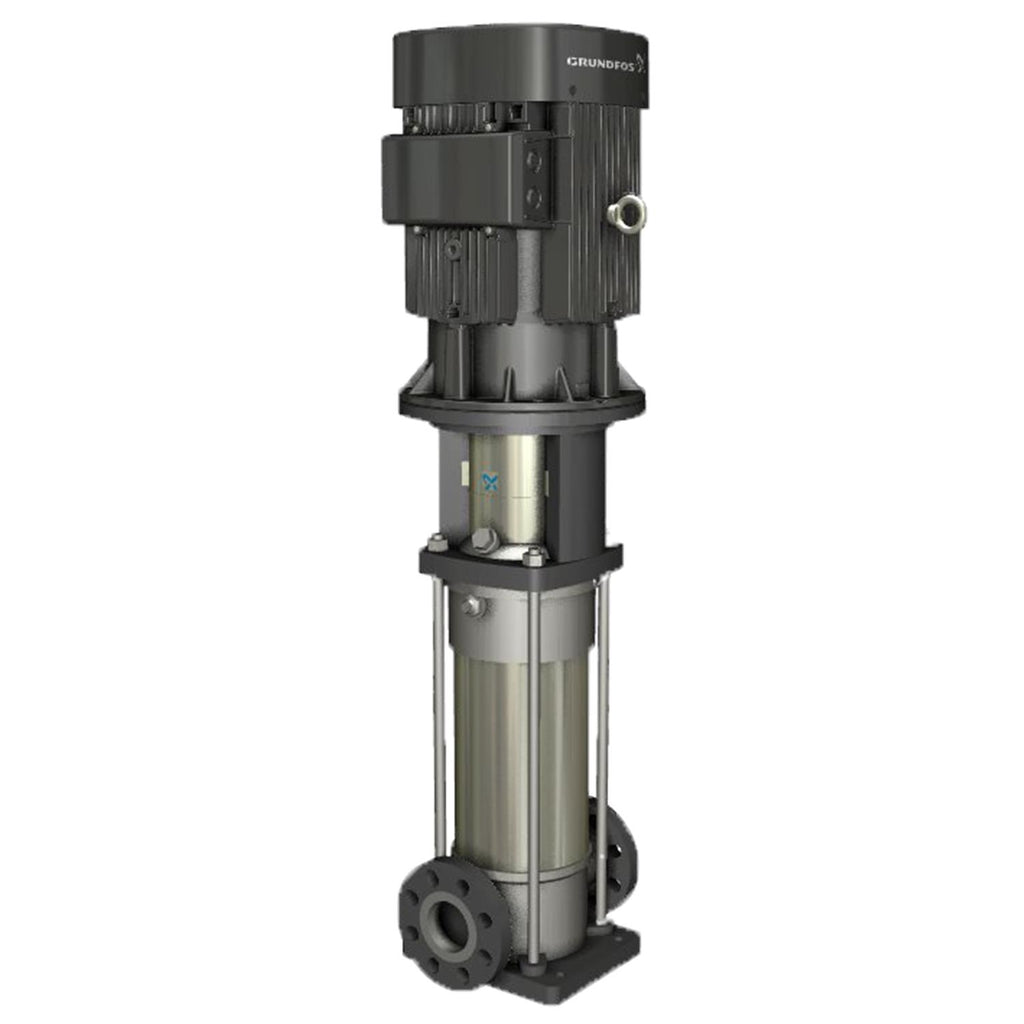

Grundfos 99853461 - CRN 3-9 M-FGJ-A-V is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for applications that require consistent and reliable performance.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5713835234681
Approvals CE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 69.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Max pressure at stated temp 363 psi / 194 °F
Maximum head 280.9 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 55.3 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3466 rpm
Pump version M
Rated flow 15.4 US gpm
Rated head 206.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard NEMA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

Dimensional Drawing
