Grundfos 98140026 - CRN 3-4 FO-CX-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98140026

Price:
Sale price$14,615.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

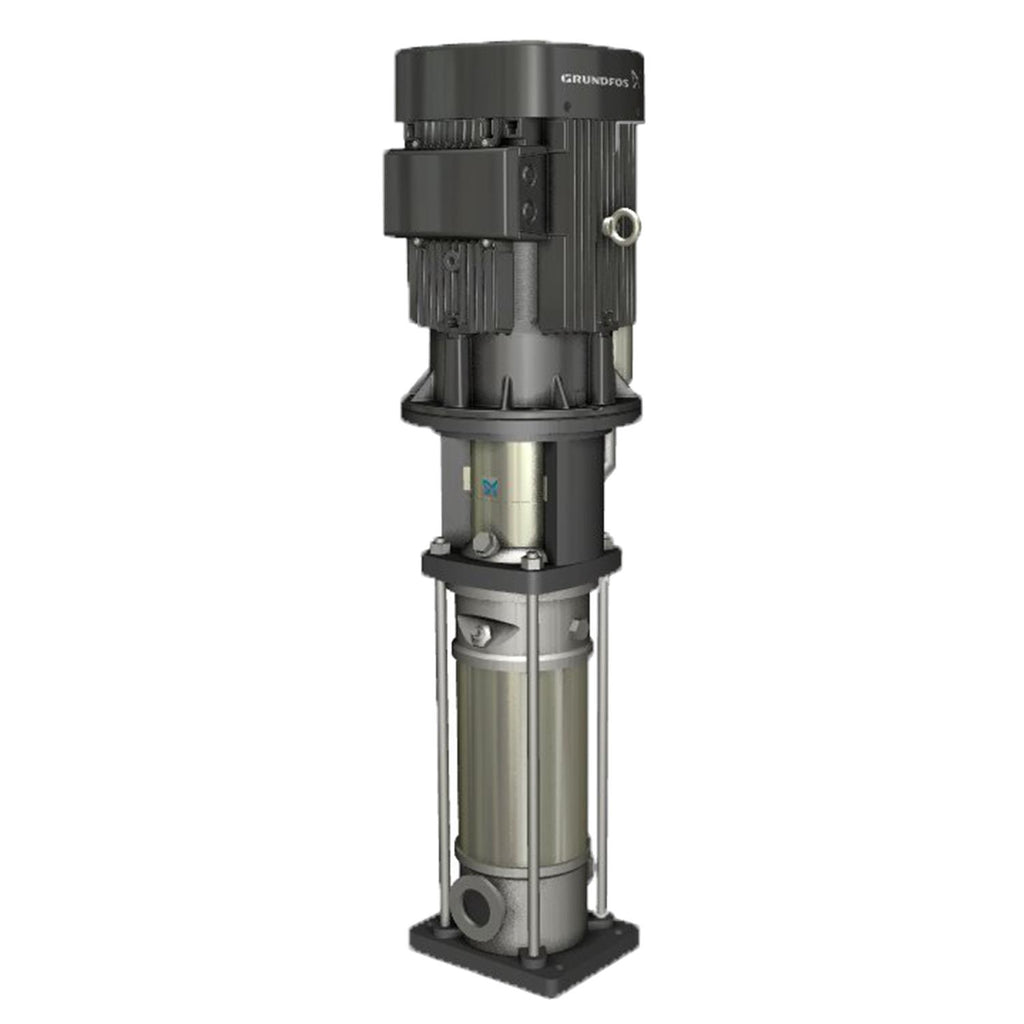

Grundfos 98140026 - CRN 3-4 FO-CX-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98140026 - CRN 3-4 FO-CX-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 3-4 FO-CX-A-F-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution.

EAN 5711490344943
Approvals EAC
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT85
Frequency converter NONE
Gross weight 78.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 124.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT85
Motor efficiency at 1/2 load 77.9-71.6 %
Motor efficiency at 3/4 load 77.5-77 %
Motor efficiency at full load 1 76.8-79.1 %
Motor standard IEC
Motor type 71BA
Net weight 51.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.88-0.78
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.55 kW
Pump speed on which pump data are based 3447 rpm
Pump version FO
Pumped liquid Water
Rated current 2
Rated flow 15.4 US gpm
Rated head 90.56 ft
Rated power - P2 0.55 kW
Rated speed 3370-3460 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard IEC
Starting current 480-660 %
Type 71BA
Type of connection TriClamp
Version FO

Motor Curves

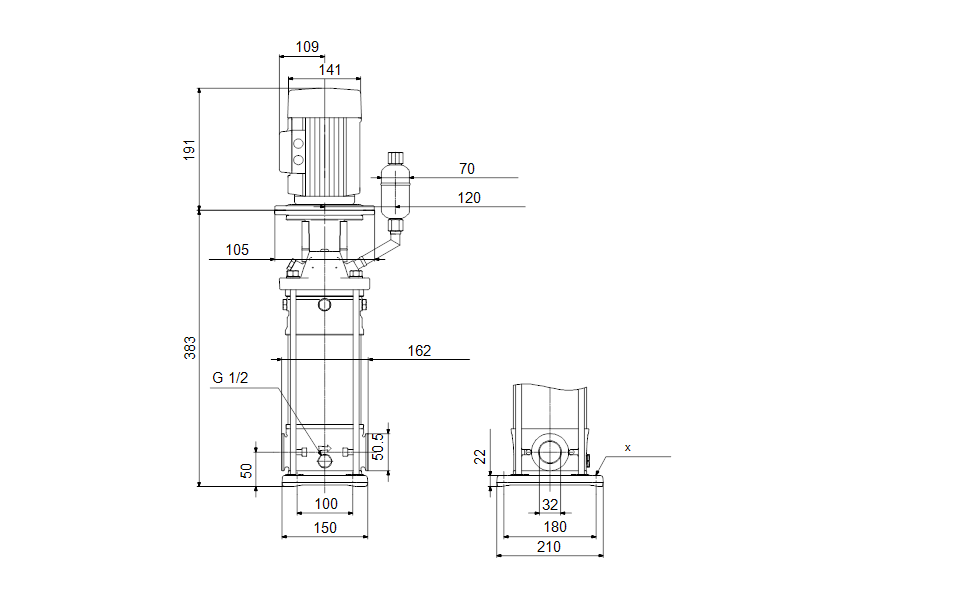

Dimensional Drawing

DWiring Diagram
