Grundfos 92548358 - CRN 3-4 M-FGJ-A-E | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92548358

Price:
Sale price$13,168.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92548358 - CRN 3-4 M-FGJ-A-E is a vertical multistage centrifugal replacement pump intended for industrial and commercial systems that require high-pressure, in-line pumping. Technicians and facilities managers use this unit for maintenance and service upgrades.

Key features

  • Manufactured by Grundfos for industrial pump service and replacement
  • Vertical, multistage centrifugal design suited to high-pressure and in-line applications
  • Provides reliable pressure boosting and efficient staged pumping for system longevity

Applications

Typical uses include boiler feed, HVAC pressure boosting, water supply, process circulation, and other industrial high-pressure or in-line multistage needs.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92548358

EAN 5715116078328
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 85.3 lb
IE efficiency IE3 78
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 124.3 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.74
Motor efficiency at 3/4 load 0.77
Motor efficiency at full load 1 0.785
Motor standard NEMA
Motor type WEG
Net weight 74.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3439 rpm
Pump version M
Pumped liquid Water
Rated current 3.0/1.5 A
Rated flow 15.4 US gpm
Rated head 90.56 ft
Rated power - P2 0.75 kW
Rated speed 3435 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 4
Standard NEMA
Starting current 8.8
Type WEG
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

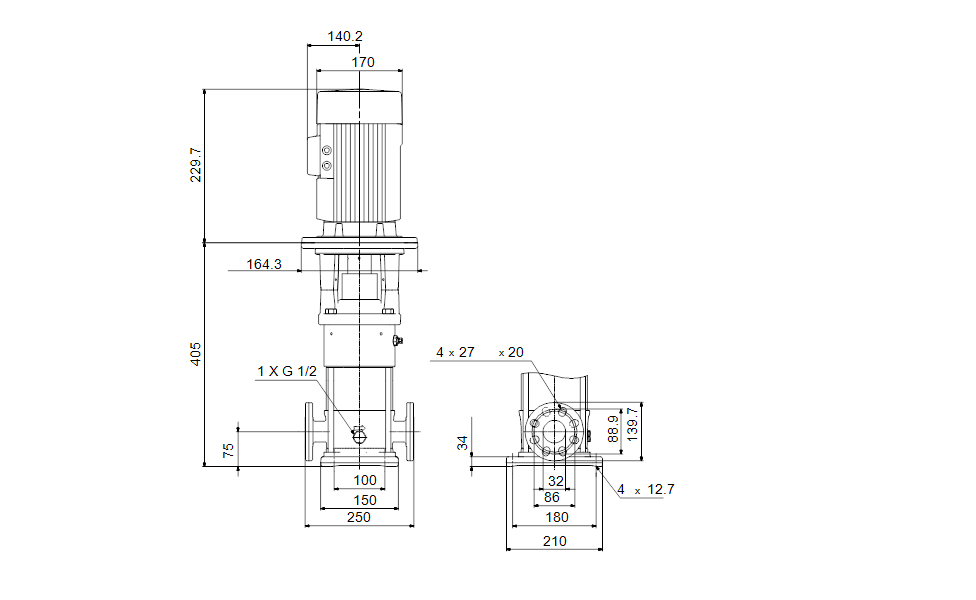

Dimensional Drawing

DWiring Diagram
