Grundfos 97734038 - CRN 3-3 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,443.64
GRUNDFOSSKU: 97734038

Price:
Sale price$1,929.36 Regular price$3,373.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734038 - CRN 3-3 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for applications requiring high pressure and flow rates, making it suitable for booster systems, water supply, and various industrial processes. The CRN 3-3 H-GA-A-E-HQQE features a compact design, ensuring easy installation and maintenance.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 62.8 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 3-3 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 93.51 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 77.1-75.4 %
Motor efficiency at 3/4 load 79.9-79.5 %
Motor efficiency at full load 1 79.5-80.6 %
Motor standard NEMA
Motor type 71AB
n rpm F
Net weight 50.5 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 0.5 HP
Phase 3
Power (P2) required by pump 0.5 HP
Power factor 1 0.84-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 0.5 HP
Pump version H
Rated current 1.64-1.55/0.78 A
Rated flow 15.4 US gpm
Rated head 67.92 ft
Rated power - P2 0.5 HP
Rated speed 3430-3460 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.25
Shaft Product name:CRN 3-3 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Starting current 590-650 %
Type 71AB
Version H

Motor Curves

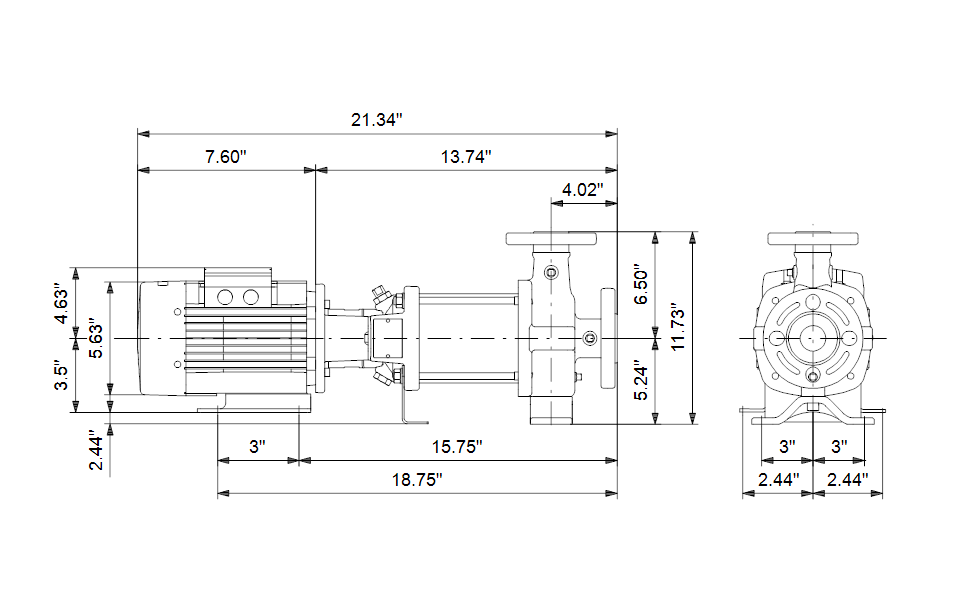

Dimensional Drawing

DWiring Diagram
