Grundfos 98098590 - CRN 3-12 A-FGJ-A-K-PQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98098590

Price:
Sale price$15,375.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

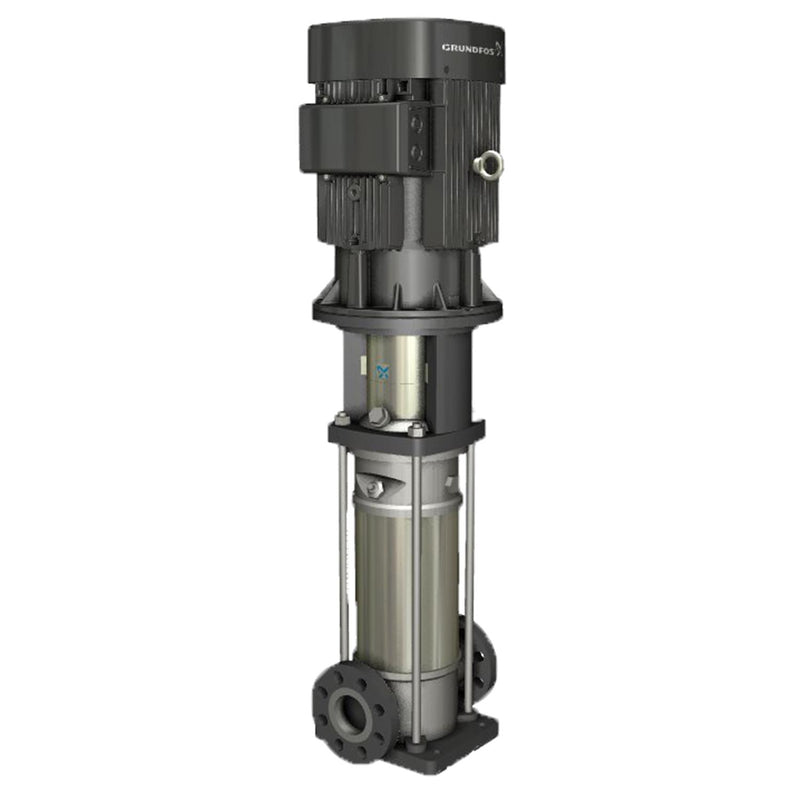

Grundfos 98098590 - CRN 3-12 A-FGJ-A-K-PQQK Vertical Multistage Centrifugal Pump

The Grundfos 98098590 - CRN 3-12 A-FGJ-A-K-PQQK is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 3-12 A-FGJ-A-K-PQQK is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is categorized under Service Special, Centrifugal Pumps, and High Pressure, ensuring it meets the diverse needs of various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628984129
Approvals CURUS
Built-in motor protection NONE
Code for rubber K
Code for shaft seal PQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 101.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 373.4 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
Net weight 86.6 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.81-0.78
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated current 6
Rated flow 15.4 US gpm
Rated head 272.3 ft
Rated power - P2 1.5 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 12
Standard NEMA
Starting current 800-910 %
Type 90GB
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

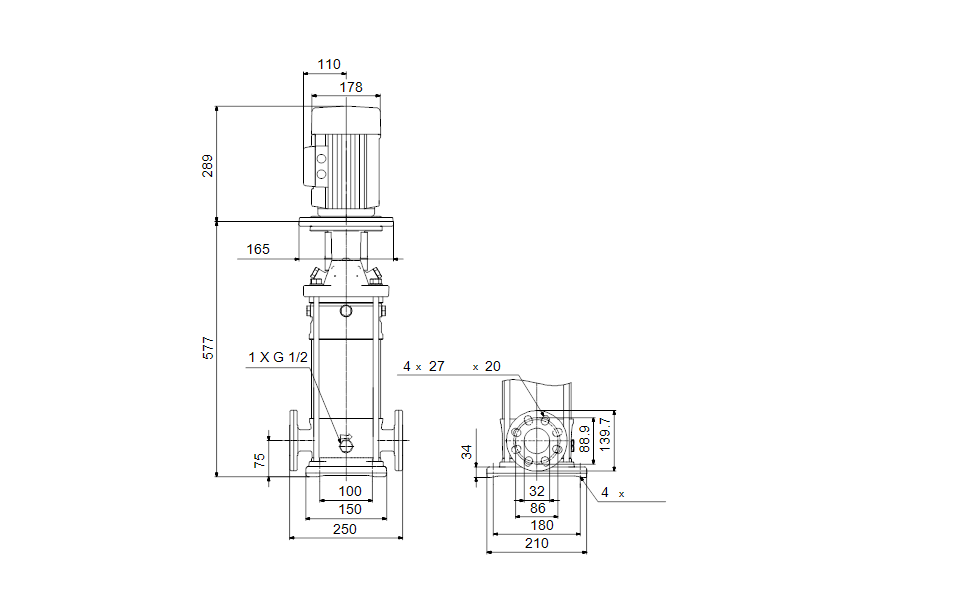

Dimensional Drawing

DWiring Diagram
