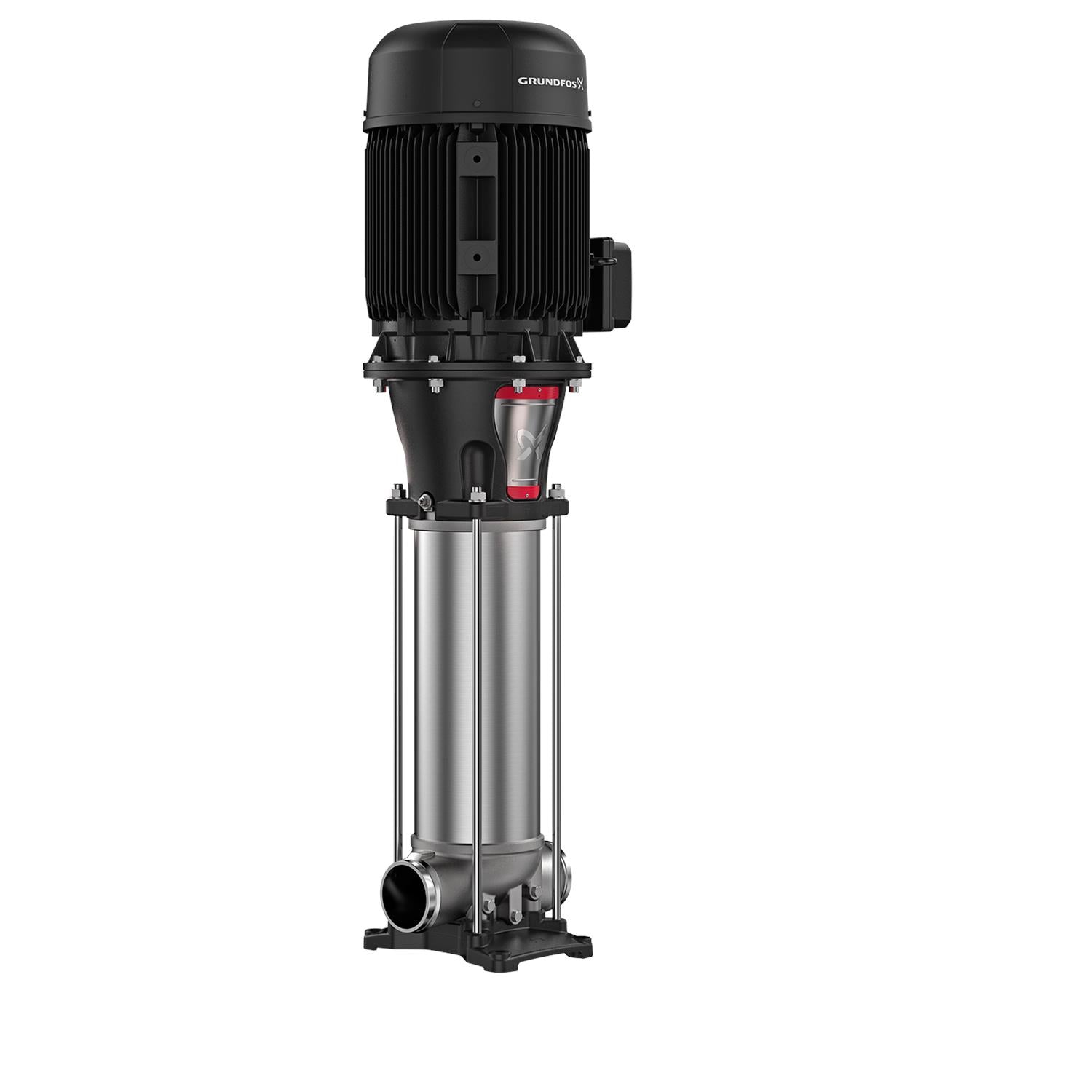

Grundfos 92542749 - CRN 255-4-2 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $44,308.70
GRUNDFOSSKU: 92542749

Price:
Sale price$59,216.30 Regular price$103,525.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92542749 - CRN 255-4-2 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its advanced design, the CRN 255-4-2 A-P-A-V-HQQV model is ideal for high-pressure applications, making it a perfect choice for those seeking robust performance. This pump is part of the CR series, which is known for its versatility and adaptability across various sectors.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of centrifugal pumps, including single and multi-stage options, and discover why Grundfos is a trusted name in the industry. For more information on specifications and applications, feel free to reach out to our knowledgeable team.

Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 800 psi
Curve tolerance ISO9906:2012 3B
Flange size for motor 449TSD
Frequency converter NONE
Gross weight 1000.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 859.3 ft
Maximum operating pressure 580.15 psi
Model A
Motor 449TSD
Motor standard NEMA
n rpm 3578rpm
Net weight 745.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 300 HP
Pressure rating for connection 800 psi
Pump 300 HP
Pump version A
Rated flow 1350 US gpm
Rated head 650 ft
Rubber V
Shaft Product name:CRN 255-4-2 A-P-A-V-HQQV
Shaft seal HQQV
Stages 4
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection PJE
Version A

Motor Curves

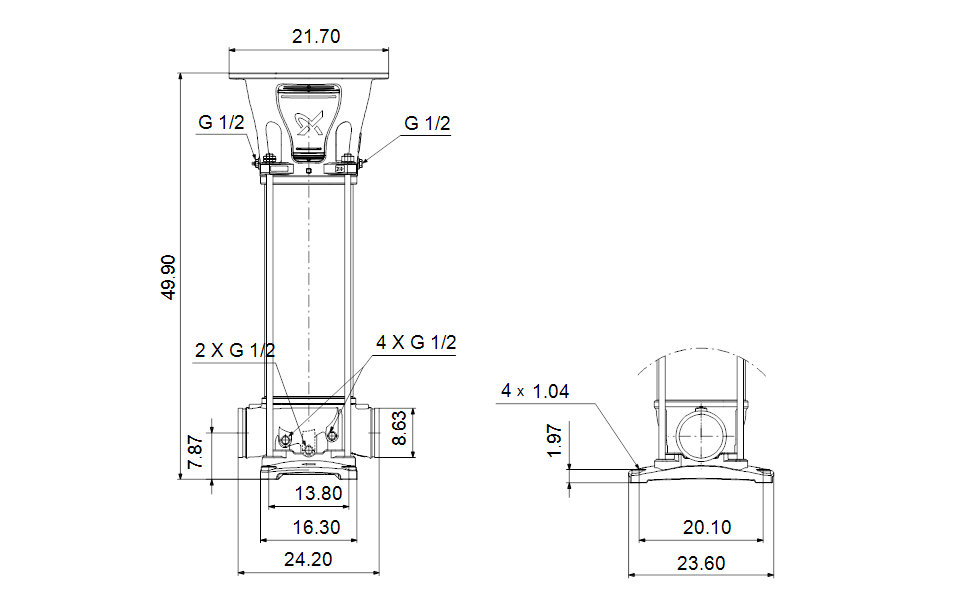

Dimensional Drawing
