Grundfos 92542589 - CRN 255-3-3 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $51,414.78
GRUNDFOSSKU: 92542589

Price:
Sale price$68,713.22 Regular price$120,128.00
Build to order – stocked components, typically available in 80 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92542589 - CRN 255-3-3 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92542589 - CRN 255-3-3 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

With its robust construction and advanced design, the CRN series is suitable for a wide range of applications, including water supply, irrigation, and industrial processes. The pump features multiple stages to ensure optimal pressure and flow rates, making it a versatile solution for demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 92542589. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 300 lb
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) IP55
Flange size for motor 447TSD
Frequency 60 Hz
Frequency converter NONE
Full load SF current 255 A
Gross weight 3590.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 95,4%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum ambient temperature 104 °F
Maximum head 575.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 447TSD
Motor efficiency at 1/2 load 0.941
Motor efficiency at 3/4 load 0.95
Motor efficiency at full load 1 0.954
Motor standard NEMA
Motor type WEG
n rpm F
Net weight 3110.0 lb
Number of poles 2
Number of reduced-diameter impellers 3
P2 kW 201 HP
Phase 3
Power (P2) required by pump 201 HP
Power factor 1 0.89
Pressure rating for connection 300 lb
Pump 201 HP
Pump version A
Rated current 222 A
Rated flow 1350 US gpm
Rated head 406.8 ft
Rated power - P2 201 HP
Rated speed 3570 rpm
Rated voltage 3 x 460 V
Rubber V
Service factor 1.15
Shaft Product name:CRN 255-3-3 A-G-A-V-HQQV
Shaft seal HQQV
Stages 3
Standard NEMA
Starting current 6.5
Support bearing Graflon
Thrust handling device Y
Type WEG
Type of connection ANSI
Version A

Motor Curves

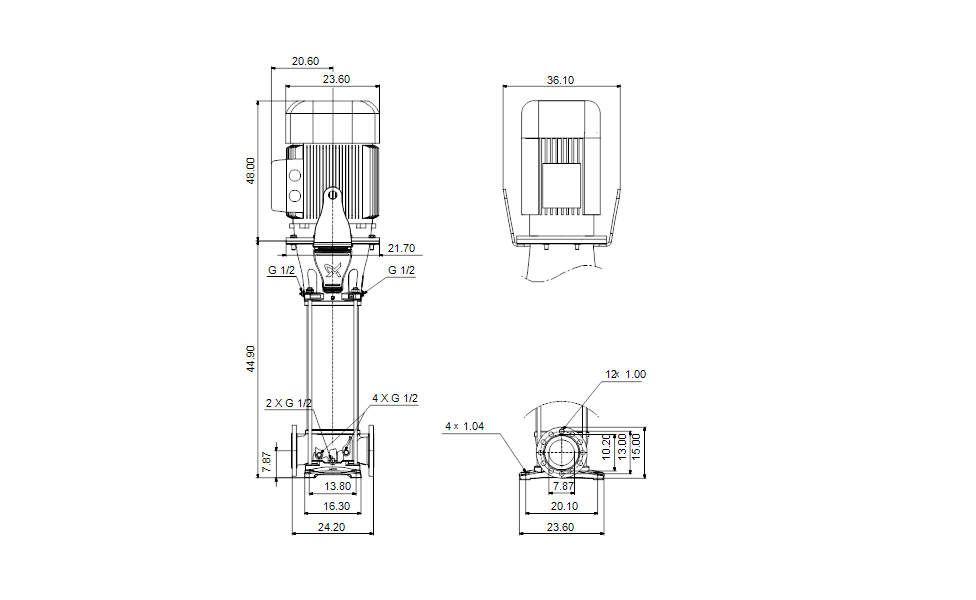

Dimensional Drawing

DWiring Diagram
