Grundfos 92542575 - CRN 255-3-3 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $36,332.92
GRUNDFOSSKU: 92542575

Price:
Sale price$48,557.08 Regular price$84,890.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 255-3-3 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 800 psi
Curve tolerance ISO9906:2012 3B
Flange size for motor 447TSD
Frequency converter NONE
Gross weight 961.0 lb
Impeller Stainless steel
Impellers 3
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 575.8 ft
Maximum operating pressure 362.59 psi
Model A
Motor 447TSD
Motor standard NEMA
n rpm 3578rpm
Net weight 703.0 lb
Number of reduced-diameter impellers 3
Power (P2) required by pump 201 HP
Pressure rating for connection 800 psi
Pump 201 HP
Pump version A
Rated flow 1350 US gpm
Rated head 406.8 ft
Rubber E
Shaft Product name:CRN 255-3-3 A-P-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection PJE
Version A

Motor Curves

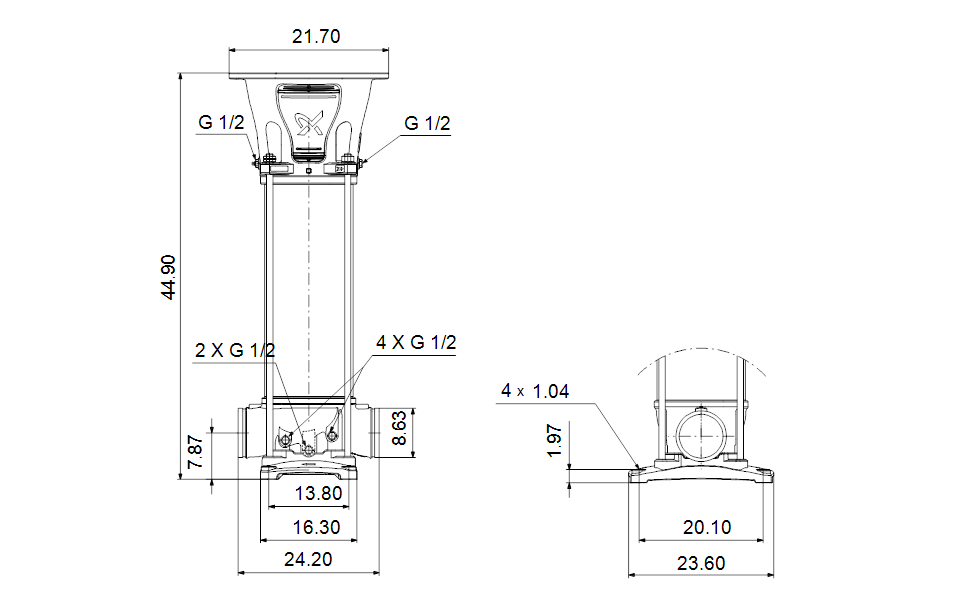

Dimensional Drawing
