Grundfos 92542572 - CRN 255-3-3 A-G-A-V-HQQV

Save $39,851.52
GRUNDFOSSKU: 92542572

Price:
Sale price$43,172.48 Regular price$83,024.00
Build to order – stocked components, typically available in 80 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92542572 - CRN 255-3-3 A-G-A-V-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

Code for rubber V
Material code A
Maximum operating pressure 362.59 psi
Support bearing Graflon
Type of connection ANSI
Bearing 1 Graflon
Flange size for motor 447TSD
Connect code G
Liquid temperature range -4 .. 194 °F
Net weight 774.0 lb
Gross weight 1030.0 lb
Power (P2) required by pump 201 HP
Pressure rating for connection 300 lb
Shaft Product name:CRN 255-3-3 A-G-A-V-HQQV
Frequency converter NONE
Stages 3
Rated flow 1350 US gpm
Model A
Version A
Motor 447TSD
Rubber V
Maximum head 575.8 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device Y
Rated head 406.8 ft
Curve tolerance ISO9906:2012 3B
Impellers 3
Connection 300 lb
Impeller Stainless steel
Code for shaft seal HQQV
Number of reduced-diameter impellers 3
Pump 201 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

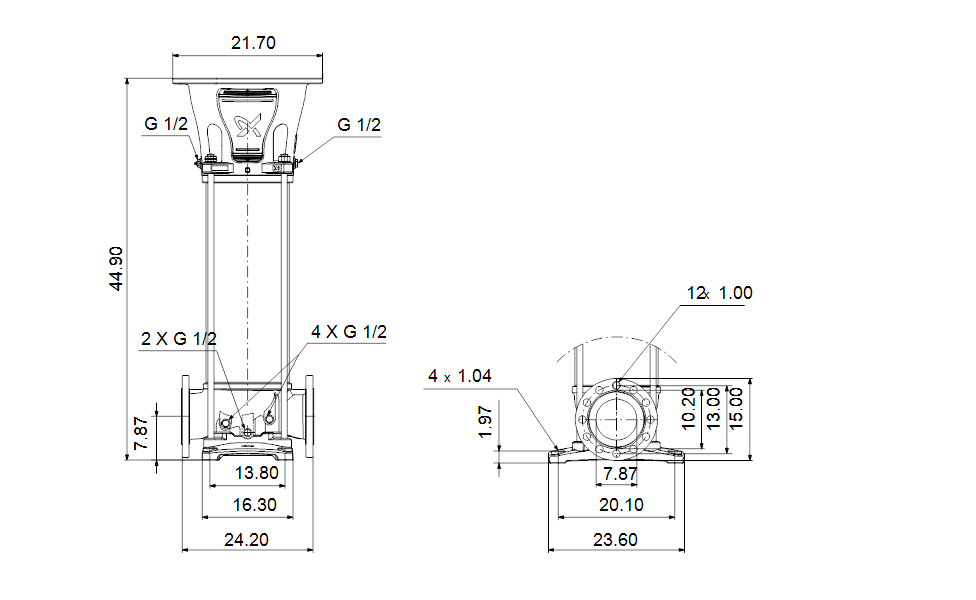

Dimensional Drawing
