Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 255-3-1 A-P-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
The Grundfos 92542607 (CRN 255-3-1 A-P-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 1350US gpm at 515.8ft. Rated 460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Power
251HP
Voltage
460V
Phase
3.0-Phase
Max Flow
1350US gpm
Max Head
515.8ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
Model Information — CRN 255-3-1 A-P-A-V-HQQV
Series: CRN
Model Code: CRN 255-3-1 A-P-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: 800 psi
Technical Specifications
| Model Number | 92542607 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Power | 251HP |
| Voltage | 460V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3573rpm |
| Pump Speed | 3579rpm |
| Full Load Current | 269A |
| Motor Type | WEG |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | IE3 95,8% |
| Insulation Class | F |
| Protection Class (IP) | TEFC |
| Nominal Flow | 1350US gpm |
| Nominal Head | 515.8ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 194°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 8inch |
| Outlet Connection | 8inch |
| Pipe Pressure Rating | 800 psi |
| Pipe Standard | PJE |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQV |
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 255-3-1 A-P-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- Approvals for drinking water
- NSF/ANSI 372
- Bearing 1
- Graflon
- Built-in motor protection
- NONE
- Code for rubber
- V
- Code for shaft seal
- HQQV
- Connect code
- P
- Connection
- 800 psi
- Cooling
- IC 411
- Curve tolerance
- ISO9906:2012 3B
- Enclosure class (IEC 34-5)
- IP55
- Flange size for motor
- 447TSD
- Frequency
- 60 Hz
- Frequency converter
- NONE
- Full load SF current
- 309 A
- Gross weight
- 3760.0 lb
- IE Eff. Class
- IE3 / NEMA Premium
- IE efficiency
- IE3 95,8%
- IE Efficiency class
- IE3 / NEMA Premium
- Impeller
- Stainless steel
- Impellers
- 1
- Insulation
- F
- Insulation class (IEC 85)
- F
- IP Class
- IP55
- Liquid max temp
- 194°F
- Liquid temperature range
- -4 .. 194 °F
- Low NPSH
- N
- Material certified according to
- European standards
- Material code
- A
- Maximum ambient temperature
- 104 °F
- Maximum head
- 671.3 ft
- Maximum operating pressure
- 362.59 psi
- Model
- A
- Motor
- 447TSD
- Motor efficiency at 1/2 load
- 0.954
- Motor efficiency at 3/4 load
- 0.958
- Motor efficiency at full load 1
- 0.958
- Motor standard
- NEMA
- Motor type
- WEG
- n rpm
- F
- Net weight
- 3290.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 1
- P2 kW
- 251 HP
- Phase
- 3
- Power (P2) required by pump
- 251 HP
- Power factor 1
- 0.9
- Pressure rating for connection
- 800 psi
- Pump
- 251 HP
- Pump version
- A
- Rated current
- 269 A
- Rated flow
- 1350 US gpm
- Rated head
- 515.8 ft
- Rated power - P2
- 251 HP
- Rated speed
- 3573 rpm
- Rated voltage
- 3 x 460 V
- Rubber
- V
- Service factor
- 1.15
- Shaft
- Product name:CRN 255-3-1 A-P-A-V-HQQV
- Shaft seal
- HQQV
- Stages
- 3
- Standard
- NEMA
- Starting current
- 6.7
- Support bearing
- Graflon
- Thrust handling device
- Y
- Type
- WEG
- Type of connection
- PJE
- Version
- A

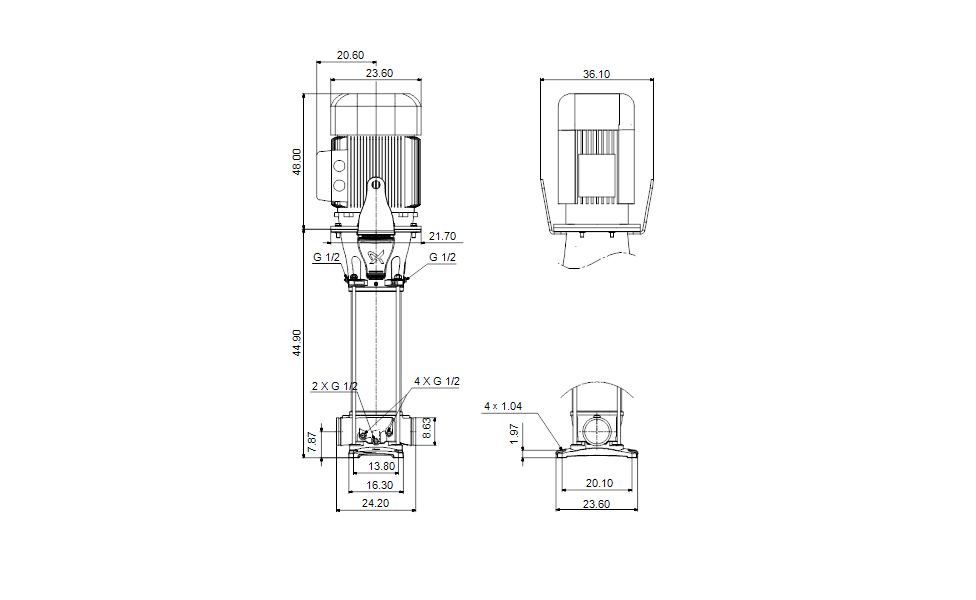

Dimensional Drawing
Wiring Diagram
