Description
The Grundfos 99400586 (CRN 255-2 A-G-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided.
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
| Model Number | 99400586 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Seal Code | HQQV |
| Seal Description | Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- Approvals for drinking water
- NSF/ANSI 372
- Bearing 1
- Graflon
- Code for rubber
- V
- Code for shaft seal
- HQQV
- Connect code
- G
- Connection
- 300 lb
- Curve tolerance
- ISO9906:2012 3B
- Flange size for motor
- 447TSD
- Frequency converter
- NONE
- Gross weight
- 990.0 lb
- Impeller
- Stainless steel
- Impellers
- 0
- Liquid max temp
- 194°F
- Liquid temperature range
- -4 .. 194 °F
- Low NPSH
- N
- Material certified according to
- European standards
- Material code
- A
- Maximum head
- 483.6 ft
- Maximum operating pressure
- 362.59 psi
- Model
- A
- Motor
- 447TSD
- Motor standard
- NEMA
- n rpm
- 3580rpm
- Net weight
- 734.0 lb
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 201 HP
- Pressure rating for connection
- 300 lb
- Pump
- 201 HP
- Pump version
- A
- Rated flow
- 1350 US gpm
- Rated head
- 381.6 ft
- Rubber
- V
- Shaft
- Product name:CRN 255-2 A-G-A-V-HQQV
- Shaft seal
- HQQV
- Stages
- 2
- Standard
- NEMA
- Support bearing
- Graflon
- Thrust handling device
- Y
- Type of connection
- ANSI
- Version
- A

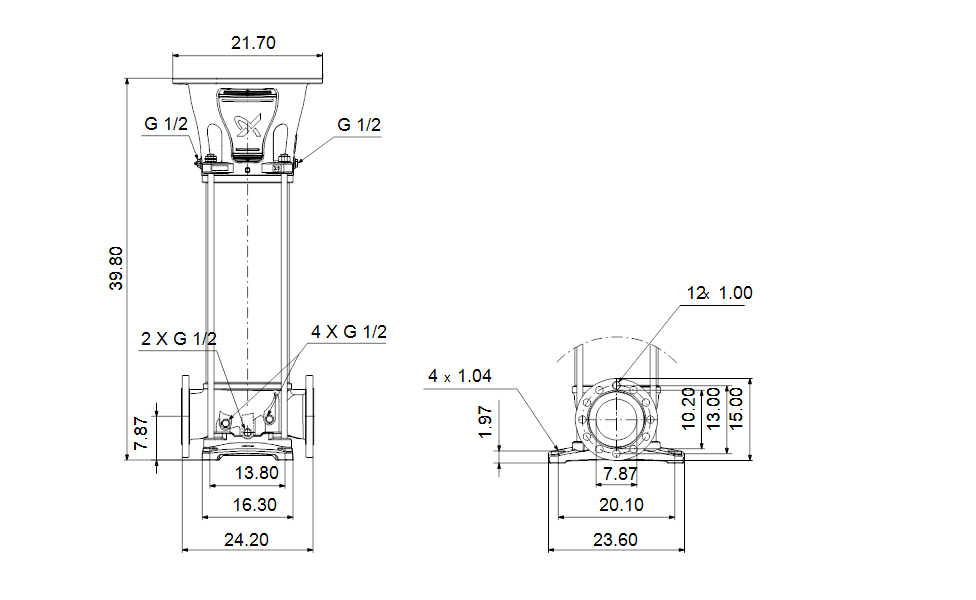

Dimensional Drawing
