Grundfos 99400574 - CRN 255-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $17,696.09
GRUNDFOSSKU: 99400574

Price:
Sale price$23,649.91 Regular price$41,346.00
Build to order – stocked components, typically available in 111 business days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 255-1 A-G-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Flange size for motor 405TSD
Frequency converter NONE
Gross weight 917.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 247.4 ft
Maximum operating pressure 232.06 psi
Model A
Motor 405TSD
Motor standard NEMA
n rpm 3572rpm
Net weight 662.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 100 HP
Pressure rating for connection 150 lb
Pump 100 HP
Pump version A
Rated flow 1350 US gpm
Rated head 187.3 ft
Rubber E
Shaft Product name:CRN 255-1 A-G-A-E-HQQE
Shaft seal HQQE
Stages 1
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection ANSI
Version A

Motor Curves

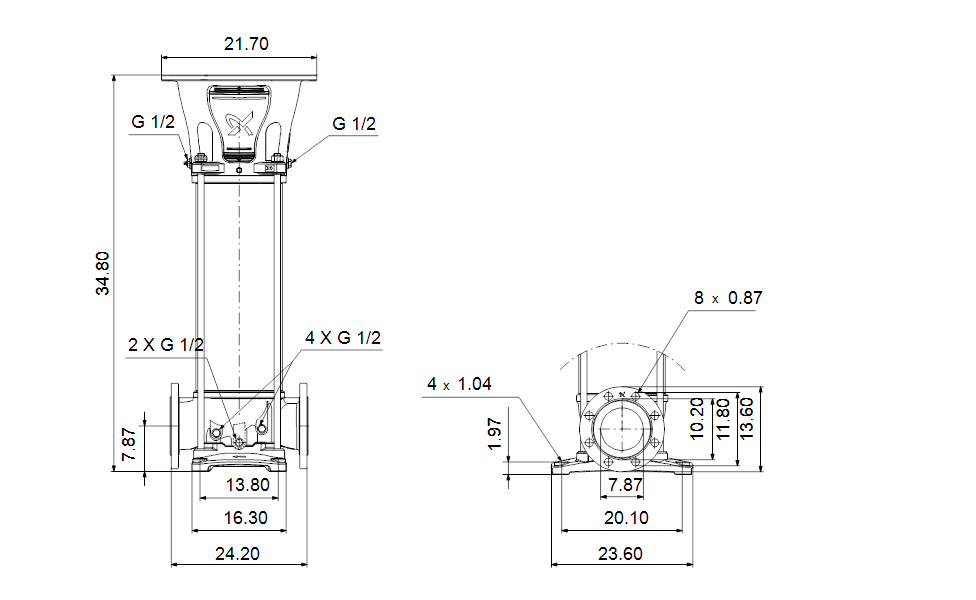

Dimensional Drawing
