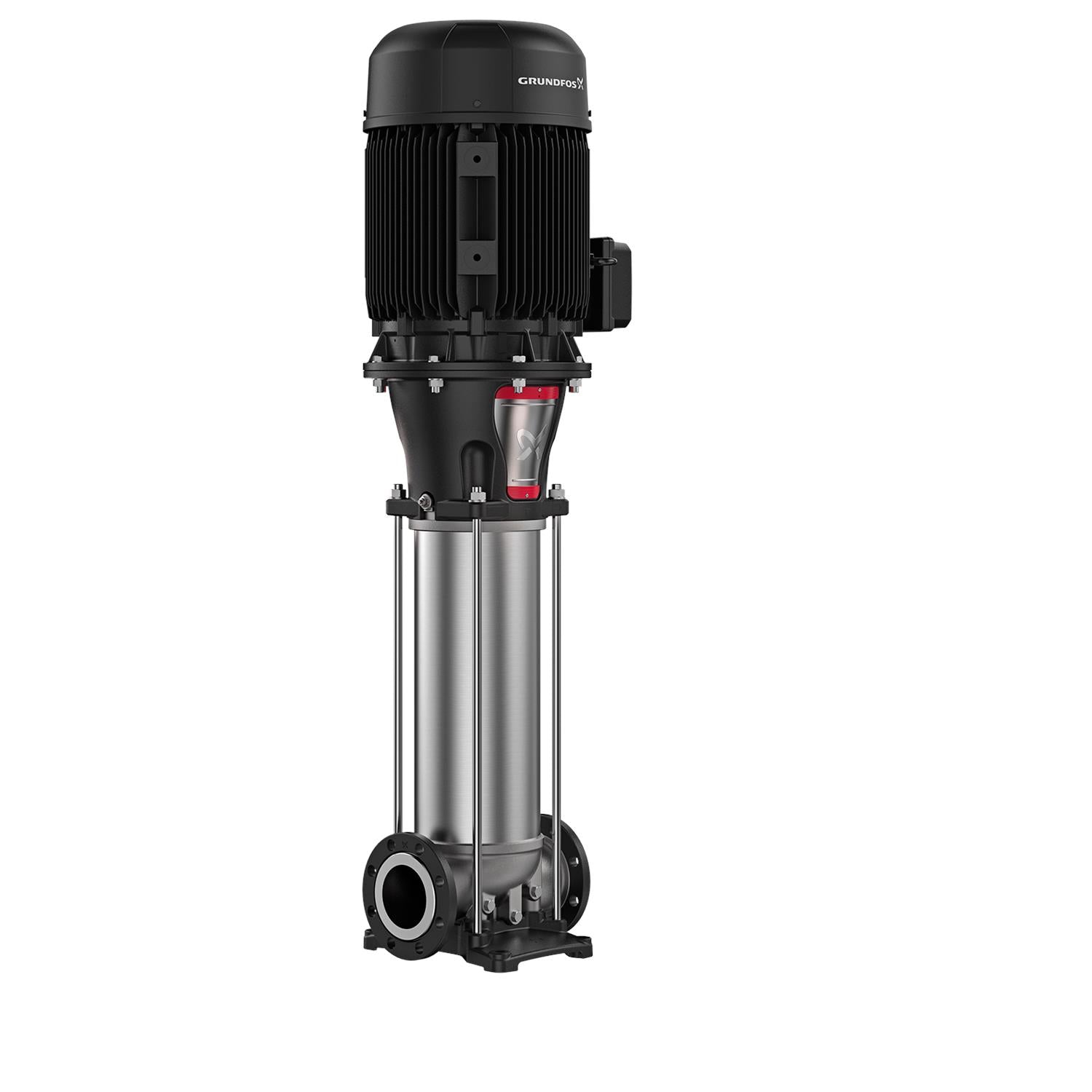

Grundfos 99145533 - CRN 255-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99145533

Price:
Sale price$74,603.00
Build to order – stocked components, typically available in 111 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 255-1 A-G-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN100HP460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 99145533 (CRN 255-1 A-G-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 1350US gpm at 187.3ft. Rated 460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
100HP
Voltage
460V
Phase
3.0-Phase
Max Flow
1350US gpm
Max Head
187.3ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 255-1 A-G-A-V-HQQV
Series: CRN
Model Code: CRN 255-1 A-G-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: 150 lb
Technical Specifications
Model Number 99145533
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 100HP
Voltage 460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3545rpm
Pump Speed 3572rpm
Full Load Current 112A
Motor Type WEG
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 94,1%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 1350US gpm
Nominal Head 187.3ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Inlet Connection 8inch
Outlet Connection 8inch
Pipe Pressure Rating 150 lb
Pipe Standard ANSI
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 255-1 A-G-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 150 lb
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) IP55
Flange size for motor 405TSD
Frequency 60 Hz
Frequency converter NONE
Full load SF current 140 A
Gross weight 2360.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 94,1%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class IP55
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum ambient temperature 104 °F
Maximum head 247.4 ft
Maximum operating pressure 232.06 psi
Model A
Motor 405TSD
Motor efficiency at 1/2 load 0.93
Motor efficiency at 3/4 load 0.941
Motor efficiency at full load 1 0.941
Motor standard NEMA
Motor type WEG
n rpm F
Net weight 1880.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 100 HP
Phase 3
Power (P2) required by pump 100 HP
Power factor 1 0.89
Pressure rating for connection 150 lb
Pump 100 HP
Pump version A
Rated current 112 A
Rated flow 1350 US gpm
Rated head 187.3 ft
Rated power - P2 100 HP
Rated speed 3545 rpm
Rated voltage 3 x 460 V
Rubber V
Service factor 1.25
Shaft Product name:CRN 255-1 A-G-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Starting current 6.5
Support bearing Graflon
Thrust handling device Y
Type WEG
Type of connection ANSI
Version A

Motor Curves

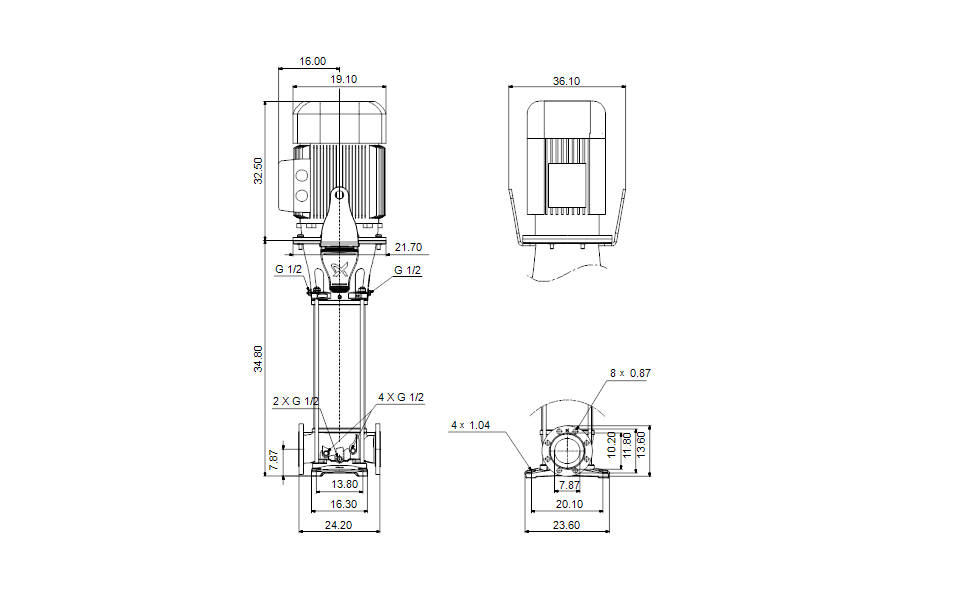

Dimensional Drawing
